Finisher Paper Sensor (S23)
Remove the finisher frames. (
Finisher Frames
)

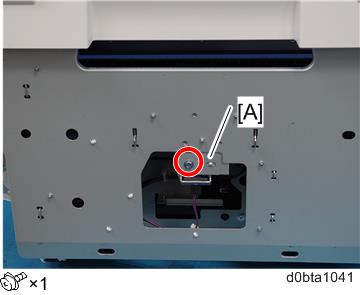

Remove the finisher paper sensor bracket [A].

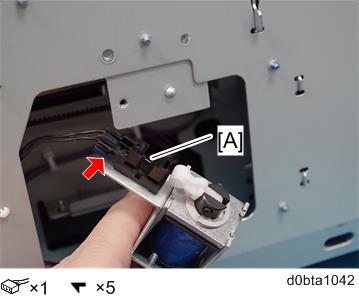

Remove the finisher paper sensor (S23) [A].
