1. Turn OFF the main power.
  2. Insert the SD card into the SD Card Slot 2 (lower). Then turn ON the main power.
  3. Enter the [Engine] in the SP mode (Service).
  4. Select SP5-992 (SP Text Mode).

  5. Select a detail SP number shown below to save data on the SD card and press [OK].
    SP5-992-xxx (SP Text Mode)

    Detail No.

    SMC Categories to Save

    001

    All (Data List)

    002

    SP (Mode Data List)

    003

    User Program

    004

    Logging Data

    005

    Diagnostic Report

    006

    Non-Default

    007

    NIB Summary

    024

    SDK/J Summary

    025

    SDK/J Application Info

    026

    Printer SP

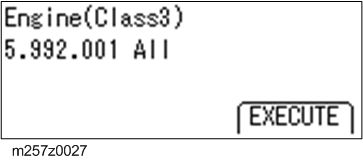

  6. Press [EXECUTE].

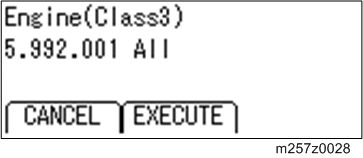

  7. Press [EXECUTE] again to start. Press [CANCEL] to cancel the saving.

  8. Wait for 2 to 3 minutes until "Completed" is shown.

    • The SMC list saving may take from 2 to 3 minutes to complete.
    • Press [CANCEL] to abort executing.

  9. Press [End] to exit from SP mode.
