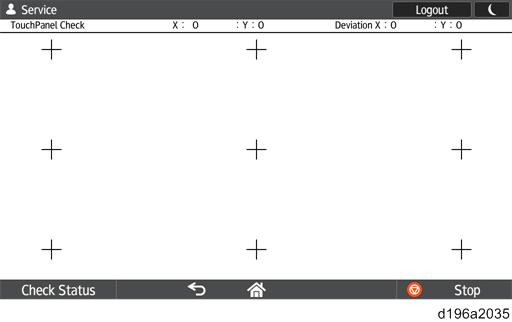

For each of the nine reference points on the screen, the distance between the detected pressed position and the nearest reference point is displayed. The last detected distance remains displayed near each reference point.
To complete the check, press the five reference points (four corners and the center).
If the distance between the detected pressed position and the reference point is within ±12 px for each of the five points, the [OK] button appears.
(However, even when the [OK] button is being displayed, if you press the screen again and the distance exceeds ±12px, the [OK] button disappears.)
If you press the [OK] button, SP5-971-001 (Operation Panel Coordinates Adjustment) switches from "0: Not Adjusted" to "1: Adjusted" and the screen returns to the self-inspection menu.
If you press the [Back] key, SP5-971-001 does not switch and the screen returns to the self-inspection menu.
