IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Exterior Covers (IM 550F/600F/600SRF)
Rear Fan Cover (IM 600SRF Only)

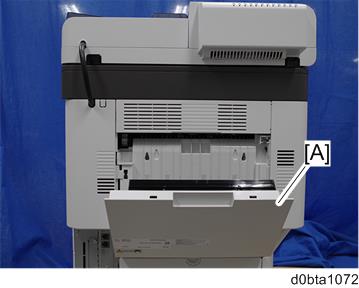

Open the finisher rear cover [A].

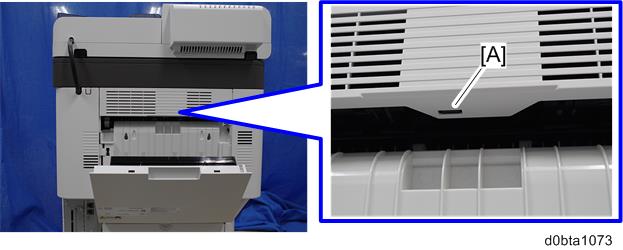

Release the hook [A].

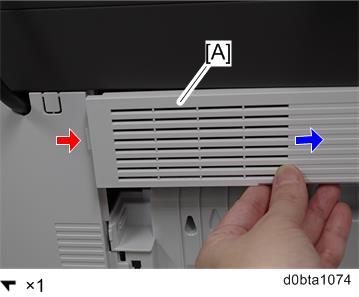

Slide the cover [A] to release the hook, and then remove the cover [A].
