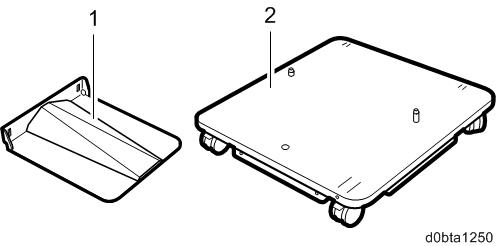

No. | Description | Q’ty |
|---|---|---|
1 | Stands | 4 |
2 | Caster table | 1 |
- | Manual: Installation Guide | 1 |
- | RoHS sheet | 1 |
- | RoHS decal | 1 |

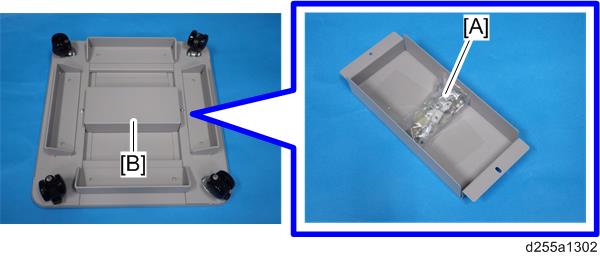

- The joint brackets and screws [A] for installation are stored in the accessory box [B] on the underside of the caster table.
- The following items are stored in the accessory box.

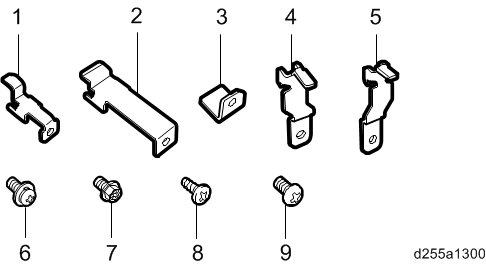

No. | Description | Q’ty |
|---|---|---|
1 | Joint bracket A | 2 |
2 | Joint bracket B | 1 |
3 | Joint bracket C | 4 |
4 | Joint bracket D | 4 |
5 | Joint bracket E | 4 |
6 | Screws: polished round/spring (M4×10) | 8 |
7 | Hexagon flange screws (M4×8) | 3 |
8 | Tapping bind screws (3×8) | 4 |
9 | Screws (M3×6) | 8 |
