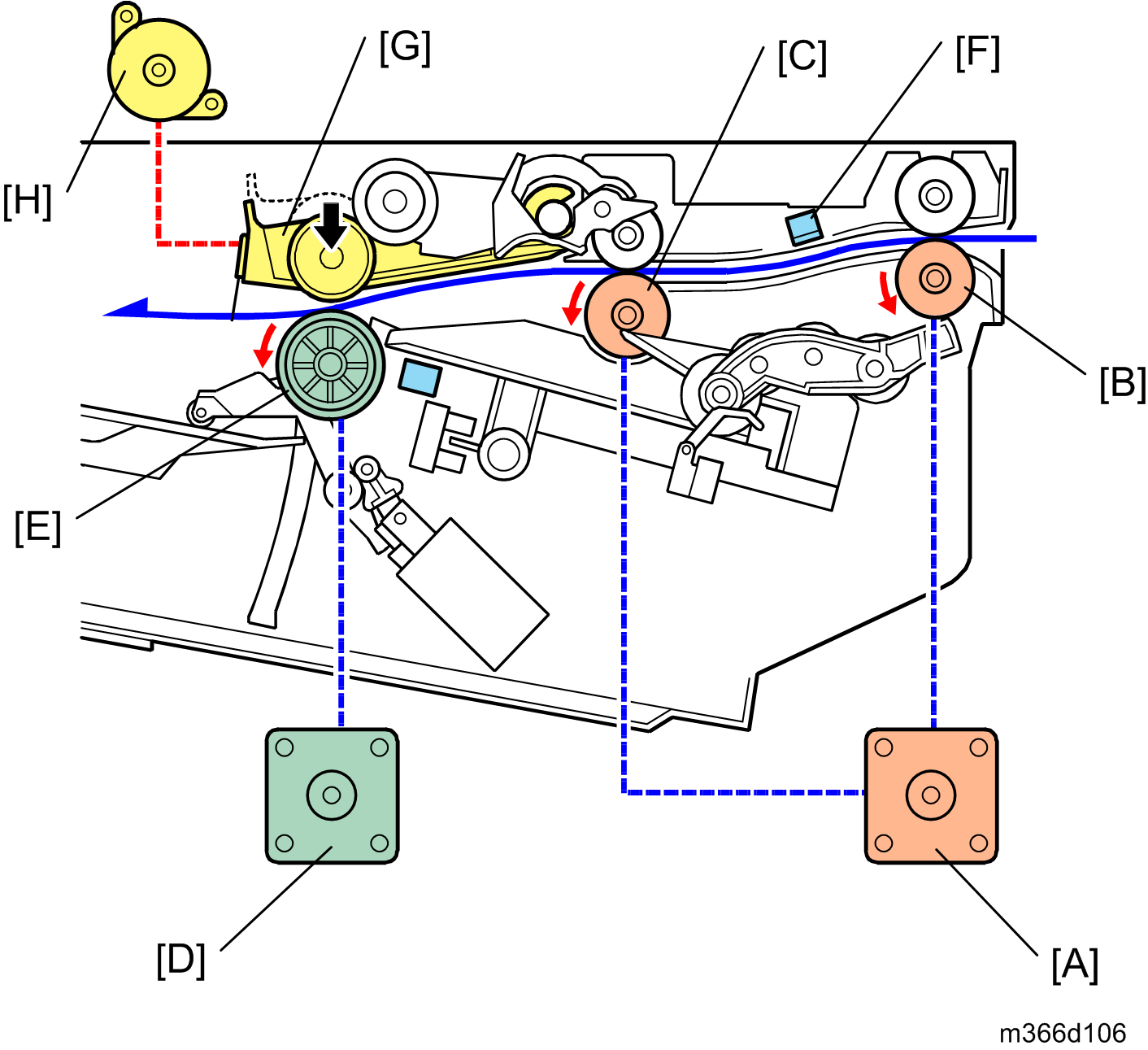

• Finisher transport motor (M12) [A] drives the finisher entrance roller [B] and finisher shift roller [C].
  • Finisher paper exit motor (M13) [D] drives the finisher paper exit roller [E].
  • When the finisher entrance sensor (S28) [F] detects the leading edge of the paper, the finisher exit guide plate unit [G] is lowered from its home position by the finisher exit guide plate motor (M17) [H].
  • Finisher paper exit roller [E] feeds the paper to the output tray.
Shift

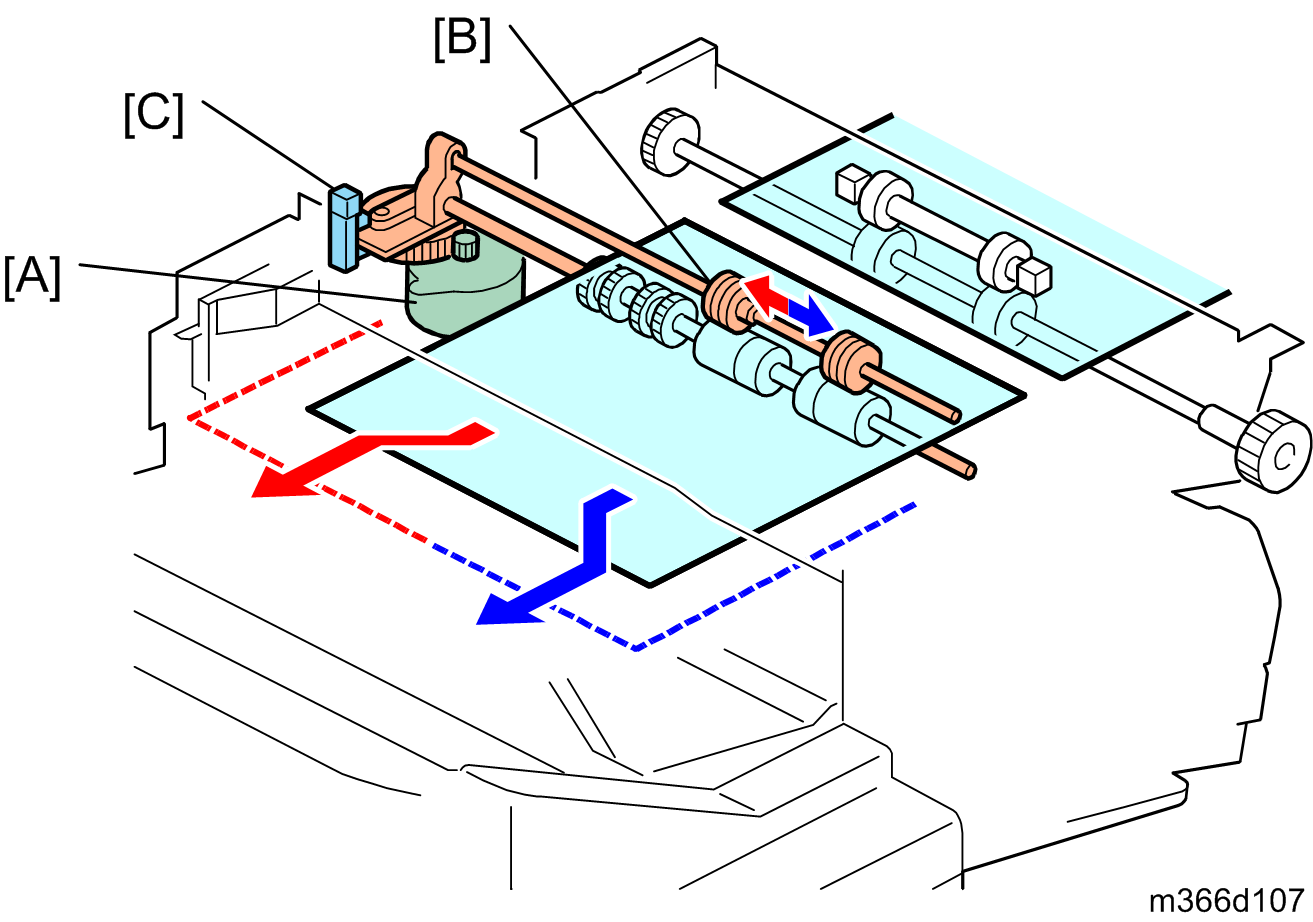

  • Finisher shift roller motor (M15) [A] moves the finisher shift roller [B].
  • Finisher shift roller HP sensor (S20) [C] detects when the finisher shift roller [B] is at the home position again after jogging.
Stapling

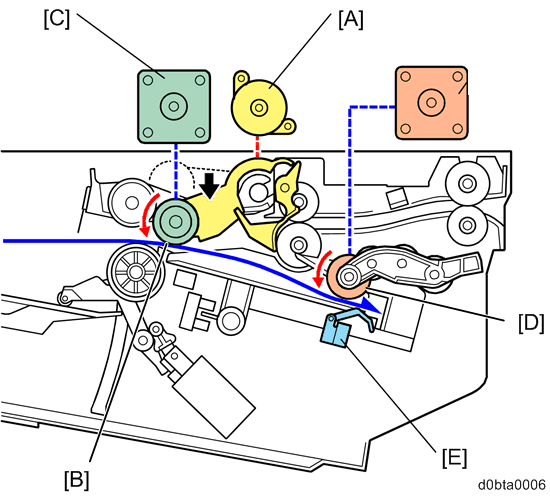

  • The finisher gathering roller motor (M14) [A] drops the finisher gathering roller [B] onto the paper.
  • The finisher paper exit motor (M13) [C] turns the finisher gathering roller [B] to reverse the paper into the finisher staple tray.
  • The reverse roller [D] aligns the paper in the finisher staple tray.
  • The finisher staple tray paper sensor (S25) [E] detects the presence or absence of paper.

  • The finisher gathering roller motor (M14) raises the finisher gathering roller.

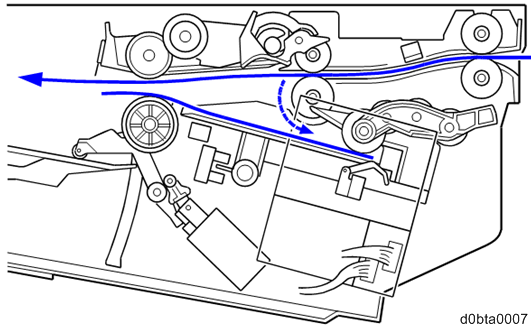

  • Then the next sheet is fed into the finisher and reversed into the finisher stapler tray.

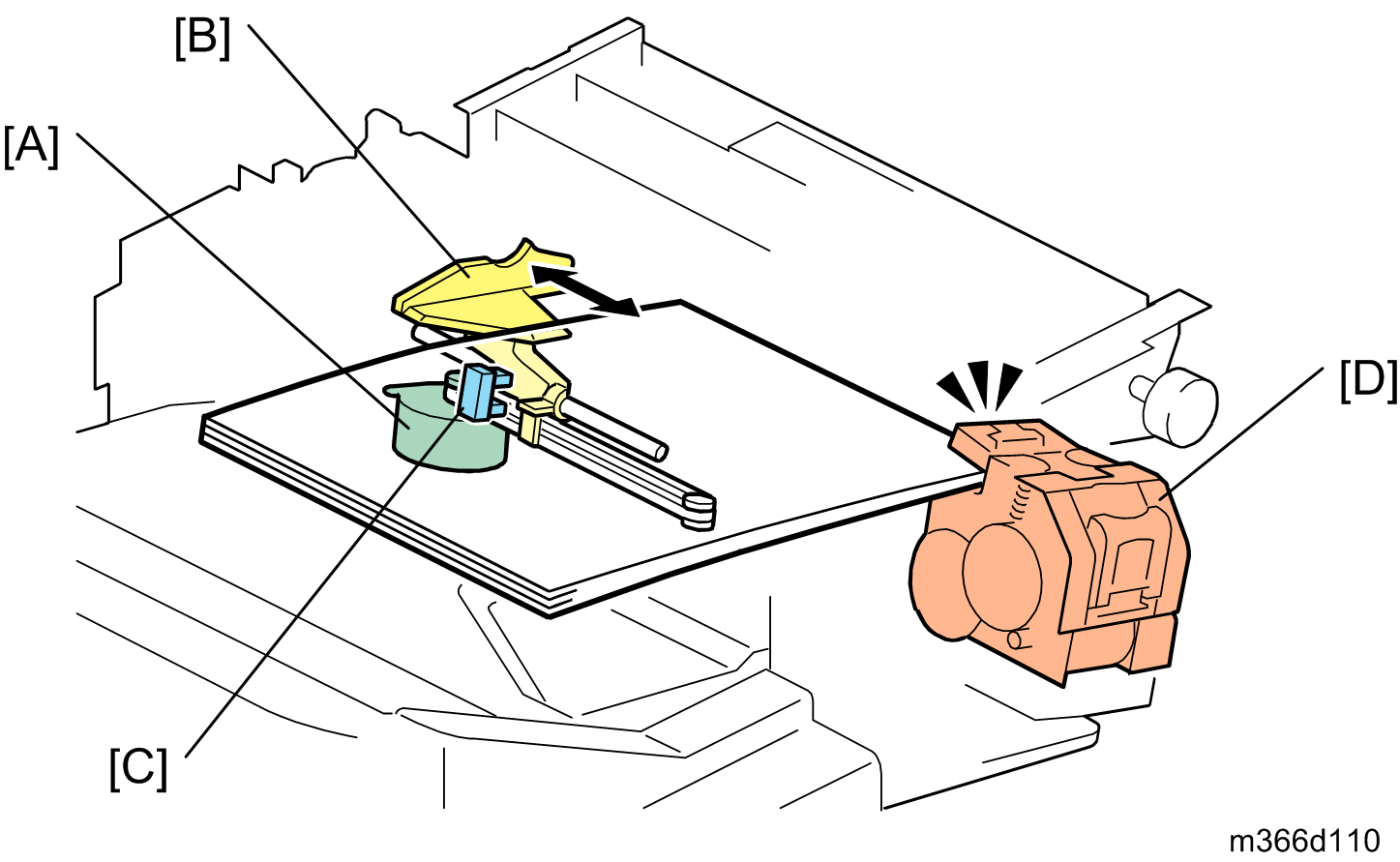

  • The finisher jogger motor (M16) [A] drives the jogger [B].
  • Finisher jogger HP sensor [C] detects when the finisher jogger fence [B] is at the home position again after jogging.
  • Stapler [D] is driven by the finisher stapler motor (M19) in stapler.

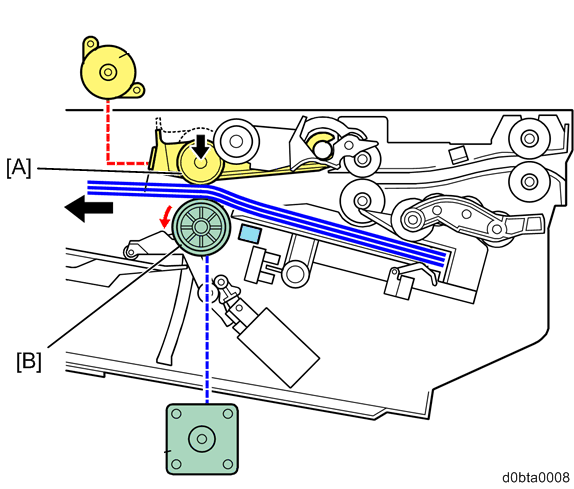

  • After stapling, the finisher exit guide plate roller [A] drops onto the top of the stack.
  • The finisher paper exit roller [B] feeds out the stack.
Finisher Jogger Fence Fine Adjustment

You can adjust the jogging position of the finisher jogger fence with the following SPs (from -1.0 mm to 1.0 mm).

  • A4: SP6-132-003
  • B5: SP6-132-005
  • Legal: SP6-132-008
  • Letter: SP6-132-009
  • Other: SP6-132-012
Tray Full Detection

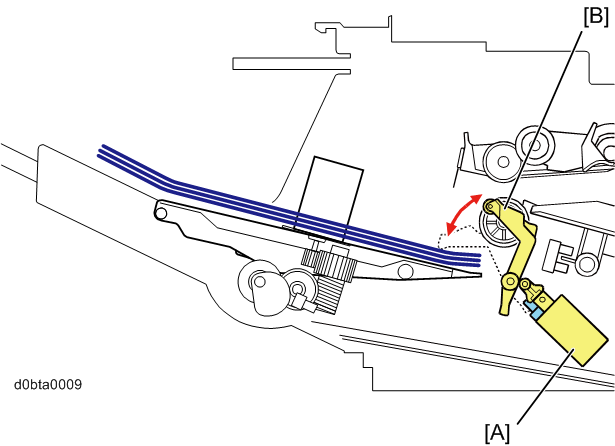

The paper sensor solenoid [A] moves the actuator [B] until it touches the top of the stack.

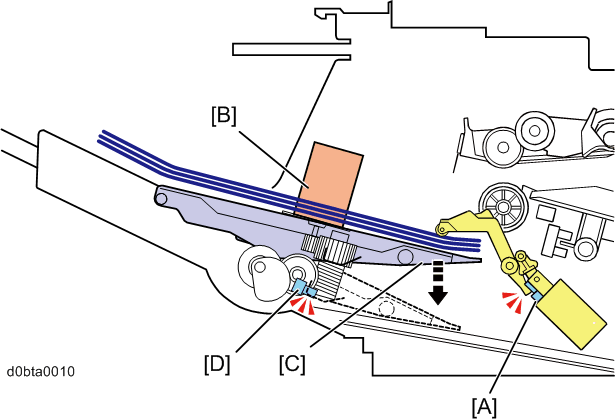

  • When the paper sensor [A] detects the actuator, the finisher tray lift motor (M18) [B] lowers the end of the tray [C] nearest the exit. This makes room for more paper on the tray.
  • If the finisher tray lower limit sensor (S22) [D] is activated, the tray cannot be lowered any more.
