The transfer unit consists mainly of the transfer roller, the discharge plate, and drum separation claws.
A high voltage generated by the power pack (PCB19) is applied to the transfer roller for transfer charging.
Paper after the transfer is separated from the drum by applying the separation charge that is output from the power pack (PCB19) to the discharge plate.

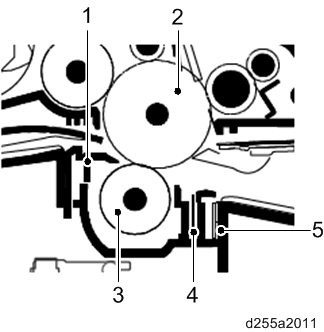

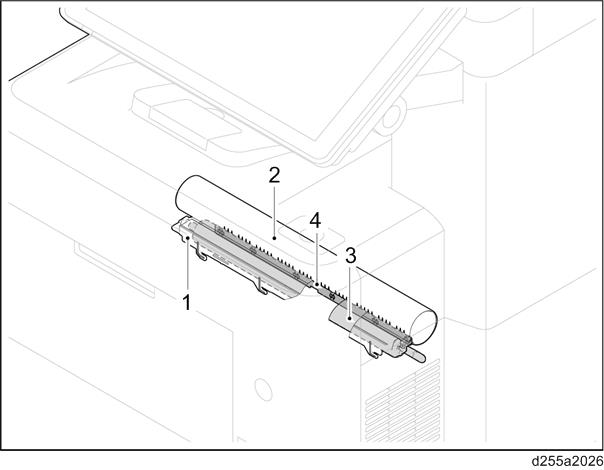

No. | Name | No. | Name |
|---|---|---|---|
1 | Transfer guide plate | 4 | Discharge plate |
2 | Drum | 5 | Drum heater (Asia Only) |
3 | Transfer roller |
