1. Remove the finisher output tray unit. (Finisher Output Tray Unit)

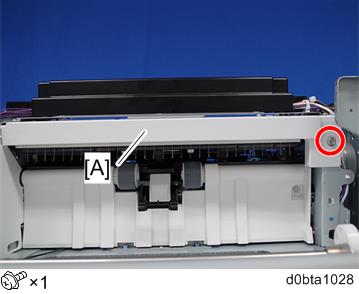

  2. Remove the finisher top front cover [A].

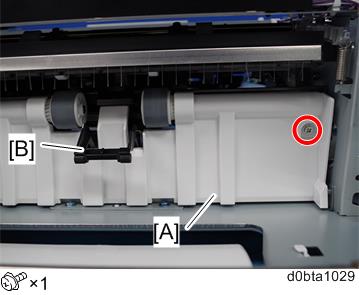

  3. Remove the paper exit cover [A].
    Pull up the finisher paper sensor actuator [B] when removing the guide plate.

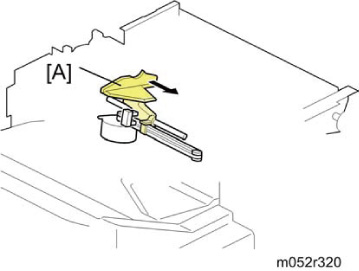

  4. Move the left jogger [A] to the center.

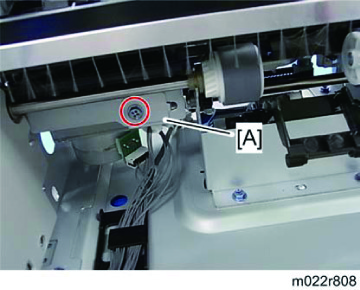

  5. Remove the finisher jogger fence HP sensor bracket [A] ( x 1).
  6. Remove the finisher jogger fence HP sensor bracket [A] ( x 1, x 1, hooks).
