IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Exit Guide Plate Motor (M17)
Remove the finisher frames. (
Finisher Frames
)

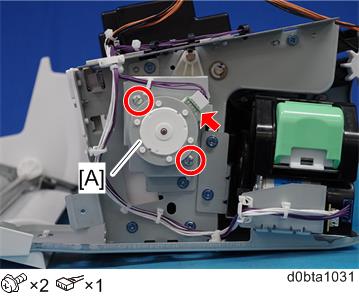

Remove the finisher exit guide plate motor (M17) [A].
