1. Remove the controller box. (Controller Box (P 800/801))

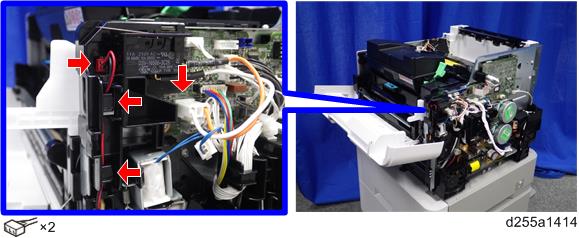

  2. Disconnect the two connectors, and then release them from the harness guides.

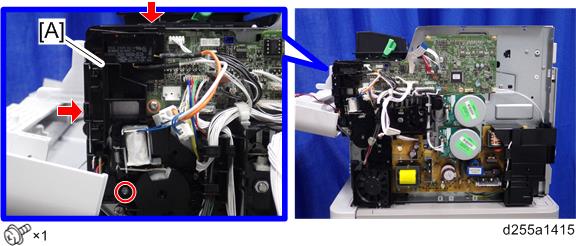

  3. Remove the bracket [A]. (hook×2)

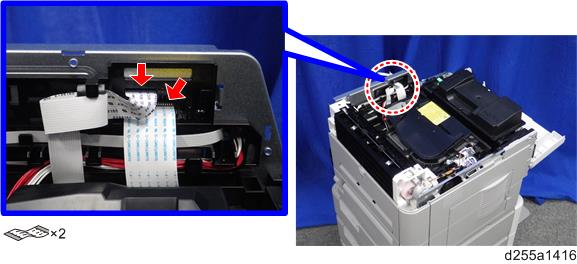

  4. Disconnect the two flat cables.

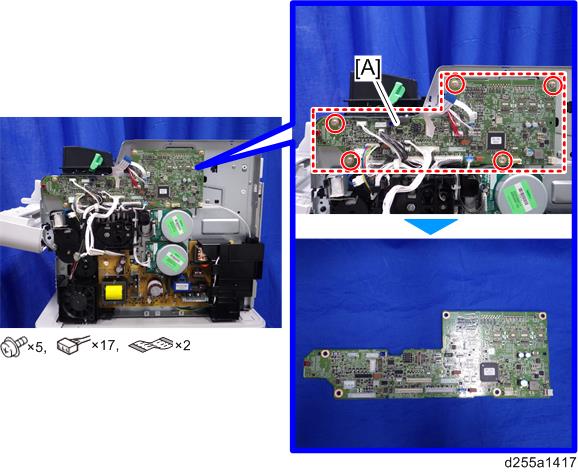

  5. Remove the IOB (PCB17) [A].

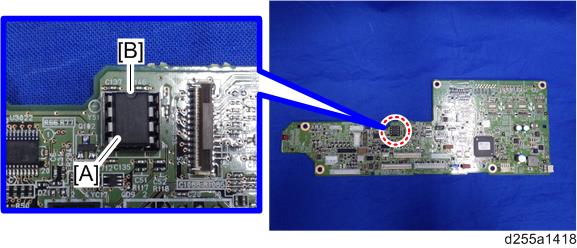

  6. Remove the NVRAM [A] from the old IOB (PCB17) and attach it to the new IOB (PCB17).

    • Install the NVRAM [A] so that the indentation [B] on the NVRAM corresponds with the mark on the IOB (PCB17). Incorrect installation of the NVRAM will damage both the IOB (PCB17) and NVRAM.
