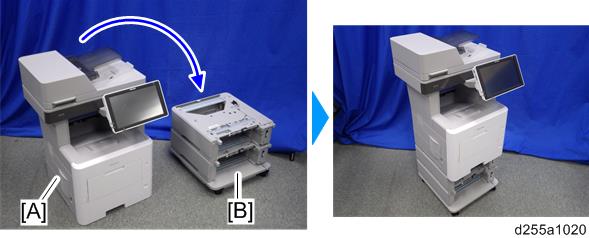

1. Install the main machine [A] on the optional paper feed unit [B].

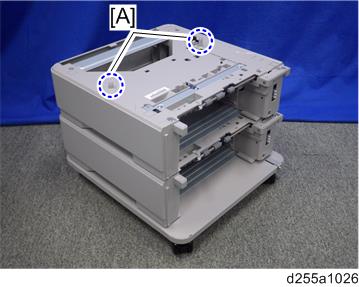

    • There are two upright pins [A] on the optional paper feed unit. Align them with the holes in the underside of the main machine, and then carefully lower the machine.

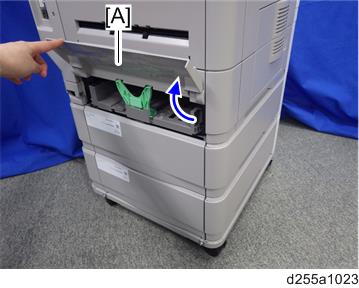

  2. Open the rear lower cover [A] of the main machine.

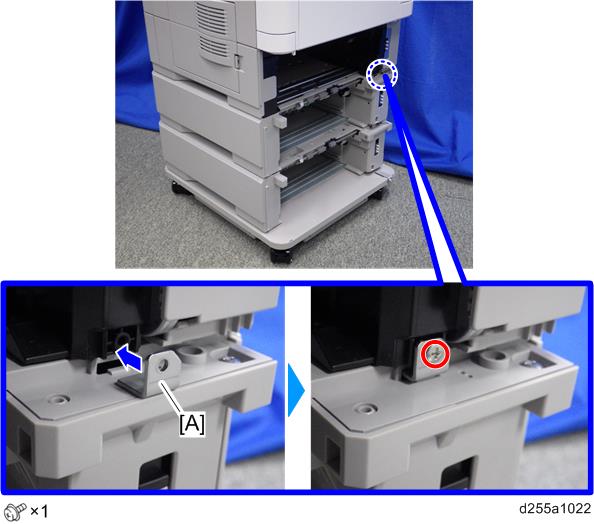

  3. Install the joint bracket E [A] on the rear right side to secure the main machine and paper feed unit.

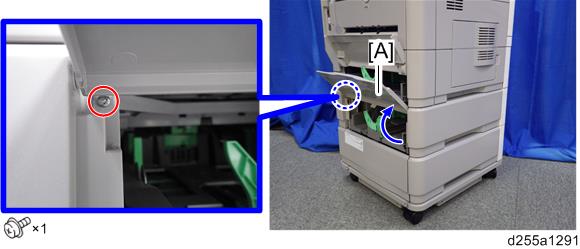

  4. Open the rear cover [A] of the paper feed unit, and then secure the joint bracket installed in the previous step with the screw (M3×6).

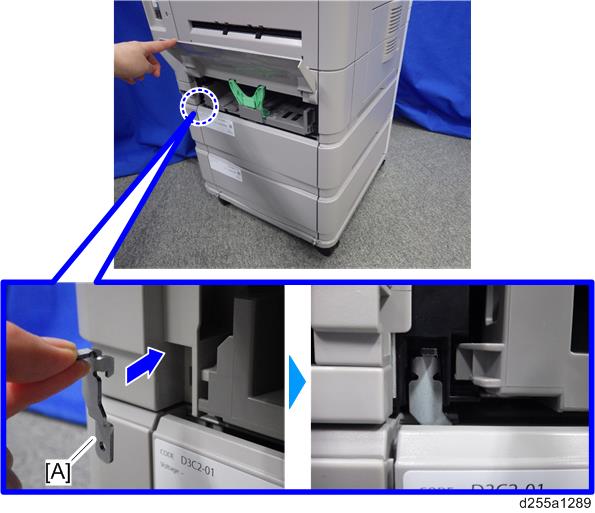

  5. Install the joint bracket D [A] on the rear left side to secure the main machine and paper feed unit.

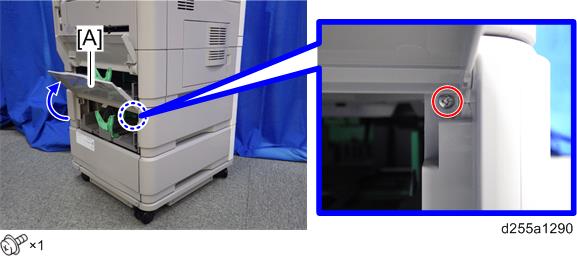

  6. Open the rear cover [A] of the paper feed unit, and then secure the joint bracket installed in the previous step with the screw (M3×6).

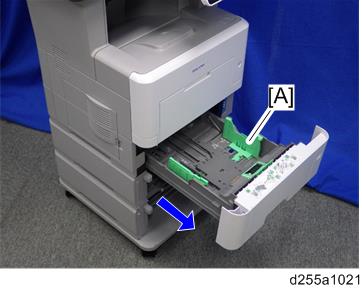

  7. Remove the paper feed tray [A] of the main machine by pulling it out.
  8. Install the joint bracket C [A] on the front side to secure the main machine and optional paper feed unit with the tapping bind screw (3×8).
  9. Put back the paper feed trays.

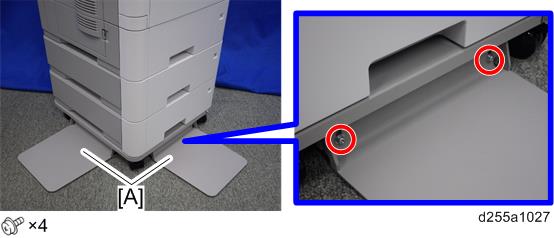

  10. Attach the two stands [A] provided with the caster table on the front and left sides with the screws (polished round/spring (M4×10)).
  11. Attach the two stands [A] provided with the caster table on the rear and right sides with the screws (polished round/spring (M4×10)).
