1. Turn OFF the main power.
  2. Remove the controller cover. (IM 550F/600F/600SRF : Controller Cover (IM550F/600F), P 800/801: Controller Cover)

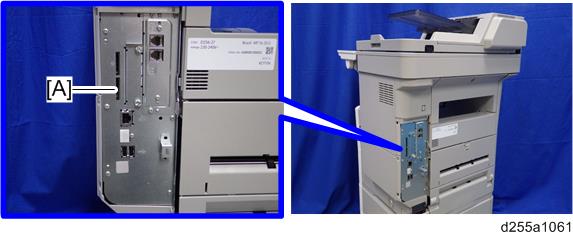

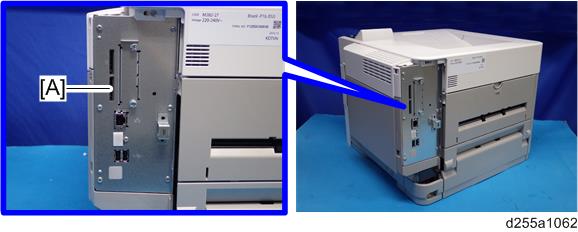

  3. Install the SD card, which has already been uploaded, into the SD Card Slot 2 (lower) [A].
    IM 550F/600F/600SRF

    P 800/801
  4. Turn ON the main power.
  5. Enter the SP mode.
  6. Execute SP5-846-052 (Restore All Addr Book).
  7. Exit the SP mode, and then turn OFF the main power.
  8. Remove the SD card from the SD Card Slot 2 (lower).
  9. Reassemble the machine.

  • The counter in the user code information is initialized after uploading.
  • The information of an administrator and supervisor cannot be downloaded or uploaded.
  • If there is no data of address book information in the SD card, an error message is displayed.
