IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Stapler Unit
Remove the right upper cover. (
Right Upper Cover (IM 550F/600F)
)

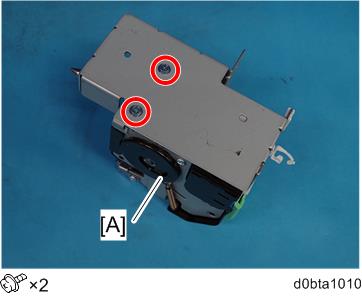

Remove the stapler unit bracket [A].

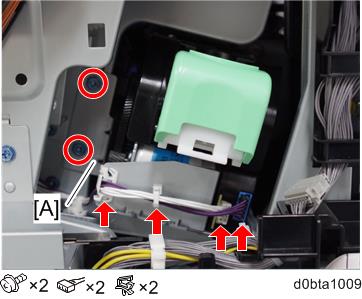

Remove the stapler unit [A].
