IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
DF (IM 550F/600F/600SRF Only)
DF Drive Unit
Remove the DF rear left cover. (
DF Rear Left Cover
)

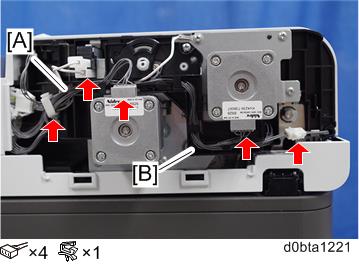

Remove the harnesses [A] from the harness guide [B].

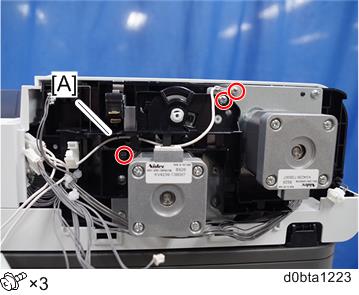

Remove the harness guide [A].

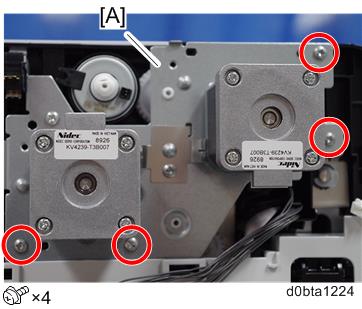

Remove the DF drive unit [A].
