1. Remove the rear lower cover. (Rear Lower Cover)

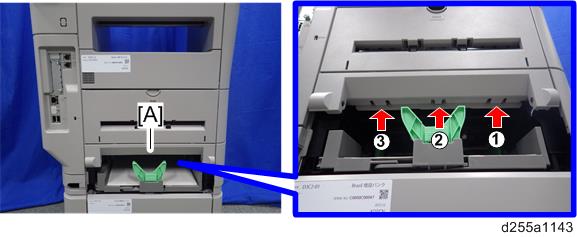

  2. Release three hooks of the rear middle cover [A] in the order of , , and .

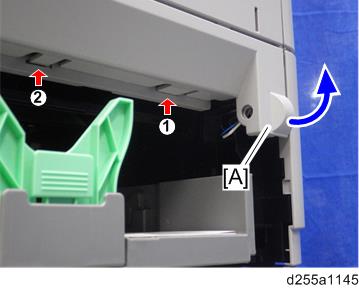

    • When releasing the hooks at and , pull the right side [A] of the rear middle cover while pressing each hook upward.

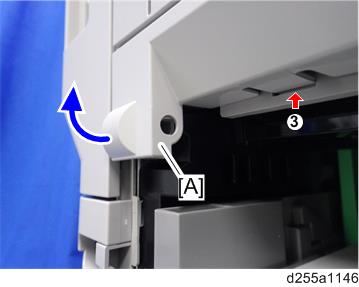

    • When releasing the hook at , pull the left side [A] of the rear middle cover while pressing the hook upward.

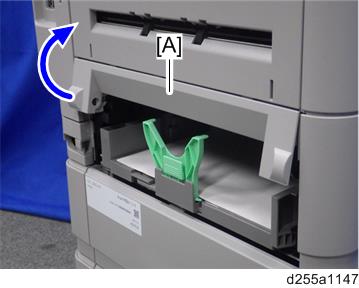

  3. Remove the rear middle cover [A] by rotating in the direction of the arrow.

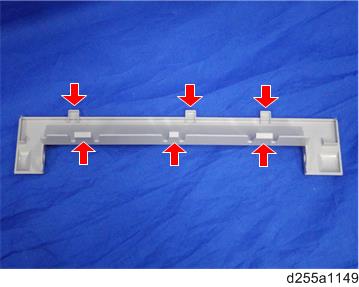

  • Be careful not to damage the hooks on the inside of the rear middle cover when you remove or install the rear middle cover.
