1. Remove the IOB (PCB17). (IM 550F/600F/600SRF: IOB (PCB17) (IM 550F/600F/600SRF), P 800/801: IOB (PCB17) (P 800/801))
  2. Remove the PSU fan (FAN3). (PSU Fan (FAN3))

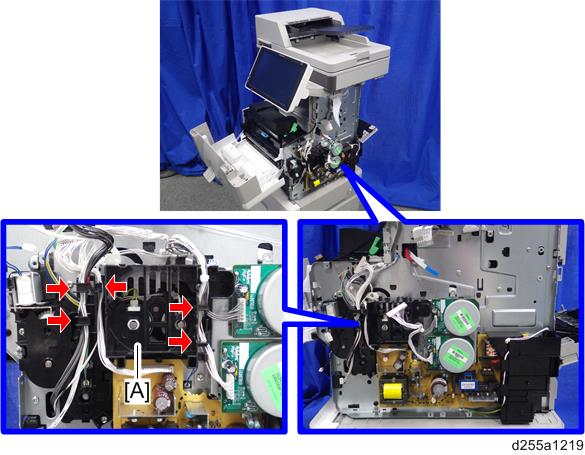

  3. Remove the harness from the harness guides of the bracket [A].

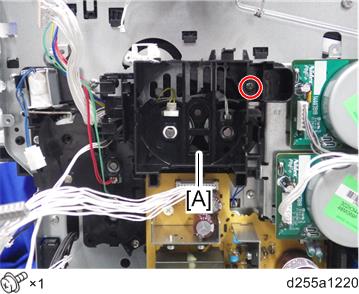

  4. Remove the bracket [A].

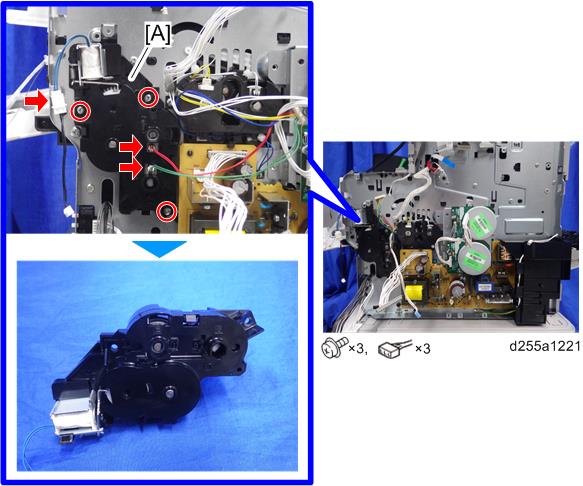

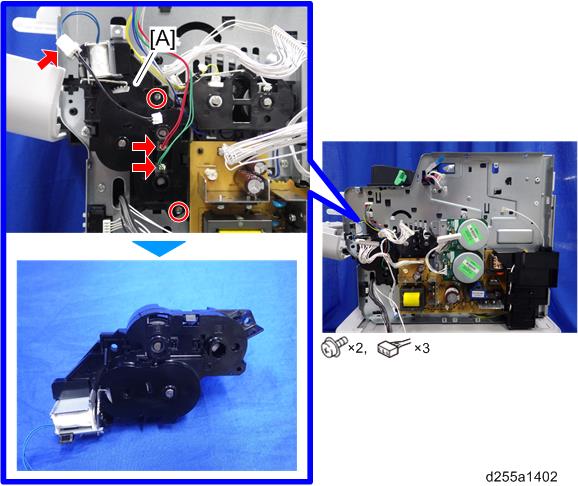

  5. Remove the paper feed motor [A].
    IM 550F/600F/600SRF

    P 800/801
