- Remove the operation panel unit. (Refer to "Operation Panel (PCB13)", "Replacement and Adjustment" in Main Chapters.)
- Remove the main controller board (Main Controller Board).

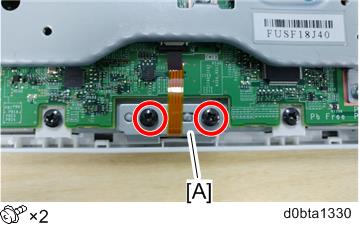

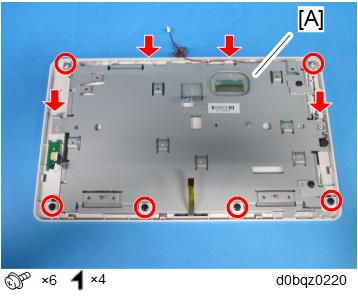

- Remove the bracket [A].

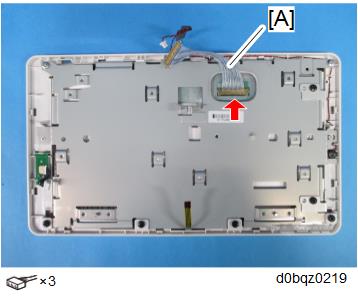

Remove the connector of the LCD I/F cable [A].

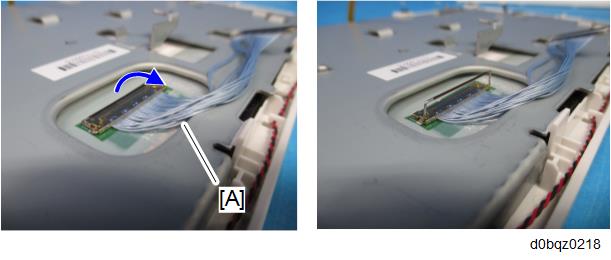

Lift the fastener of the LCD I/F cable [A].

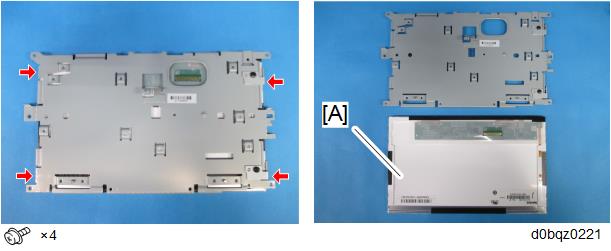

- Remove the LCD unit [A].
- Remove the LCD [A].
- After replacing the LCD, perform the following checks.
- LCD Check (LCD Check)
- TouchPanel Check (TouchPanel Check)
- Perform "TouchPanel Calibration" (TouchPanel Calibration) and "MultiTouch Calibration" (MultiTouch Calibration) of the Self Check function.
