IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Transport Motor (M12)
Remove the finisher frames. (
Finisher Frames
)

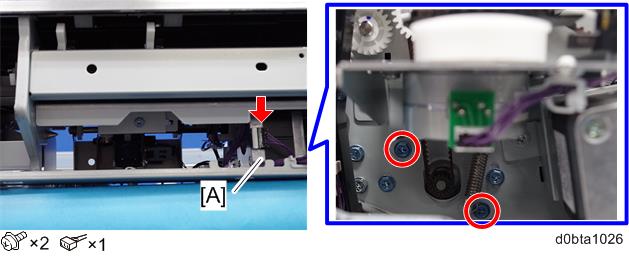

Remove the finisher transport motor (M12) [A].
Expand All
