IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Tray Lift Motor (M18)
Remove the finisher output tray unit. (
Finisher Output Tray Unit
)

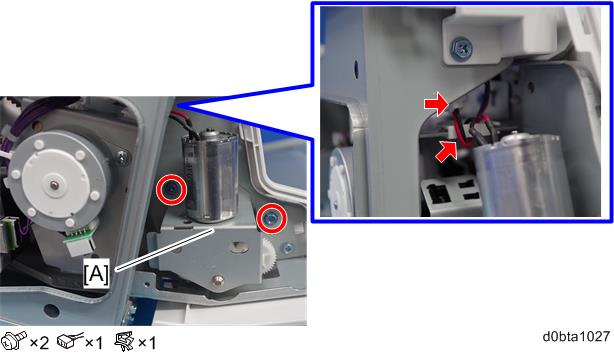

Remove the finisher tray lift motor bracket [A].
