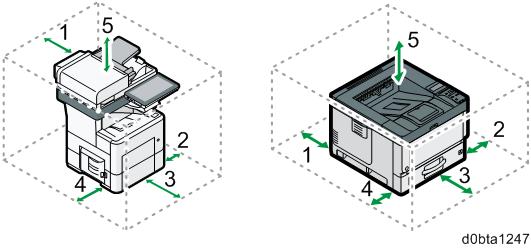

Place the machine near the power source, and provide clearance as shown:

  1. Rear: Over 300 mm (11.9")
  2. IM 550F/600F, P 800/801: Right: Over 100 mm (3.9")
    IM 600SRF: Right: Over 300 mm (11.9")
  3. Front: Over 500 mm (19.7")
  4. Left: Over 300 mm (11.9")
  5. Top: Over 400 mm (15.7")

  • The 500 mm clearance for the front is only for pulling out the paper tray. If an operator stands in front of the machine, more space is required.
