- Remove the SPDF unit. (SPDF Unit)

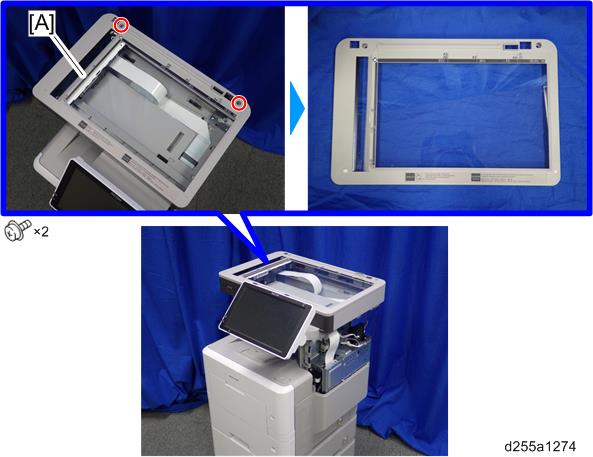

Remove the exposure glass [A].

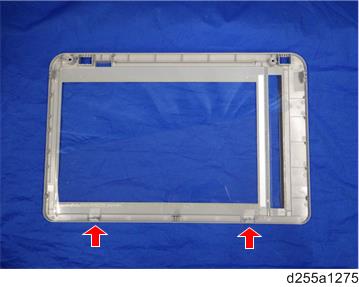

- Be careful not to damage the hooks on the inside of the exposure glass when you remove or install the exposure glass.
- Be careful not to damage the hooks on the inside of the exposure glass when you remove or install the exposure glass.

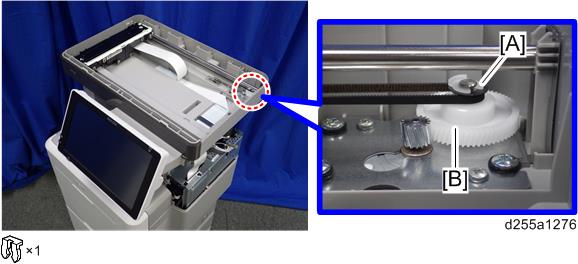

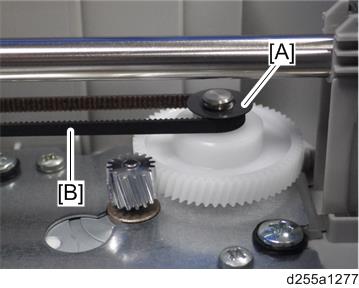

- Remove the clip [A] from the pulley [B] on the right side.
- Remove the plate [A] and carriage belt [B].

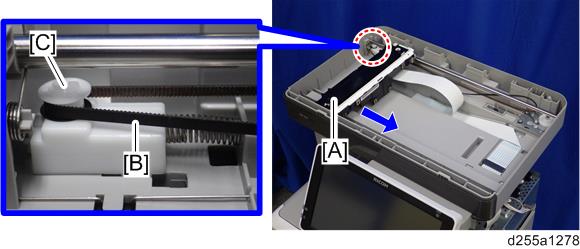

- Move the scanner carriage [A] to the right, and then remove the carriage belt [B] from the pulley [C] on the left side.

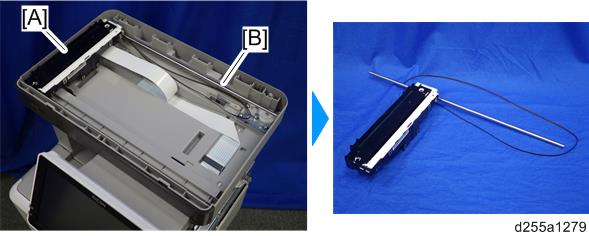

Remove the scanner carriage [A] and shaft [B] with the carriage belt from the mainframe.

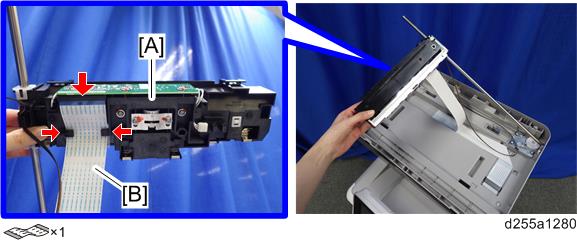

- When removing the scanner carriage [A] from the mainframe, disconnect the flat cable [B] and release it from the harness guides at the back of the scanner carriage [A].
- When removing the scanner carriage [A] from the mainframe, disconnect the flat cable [B] and release it from the harness guides at the back of the scanner carriage [A].

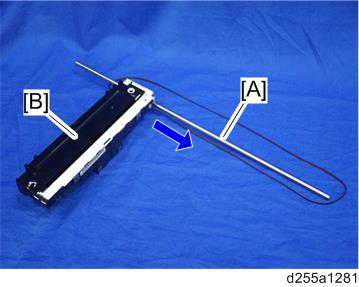

- Remove the shaft [A] from the scanner carriage [B].

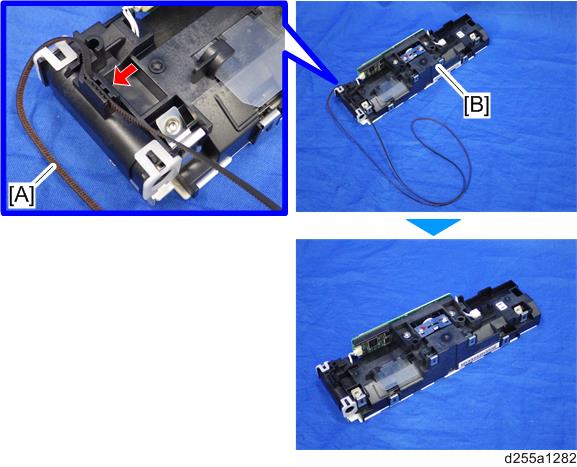

- Remove the carriage belt [A] from the scanner carriage [B]. (hook×1)
