1. Remove the internal finisher. (Internal Finisher)
  2. Remove the finisher output tray unit. (Finisher Output Tray Unit)

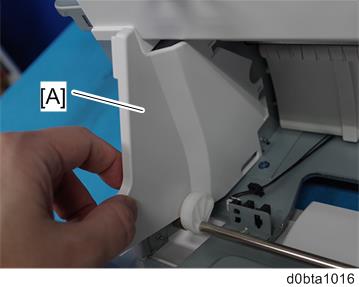

  3. Remove the side fence [A].

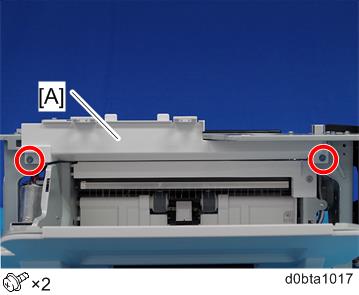

  4. Remove the cover [A].
  5. Remove the top plate (front) [A].

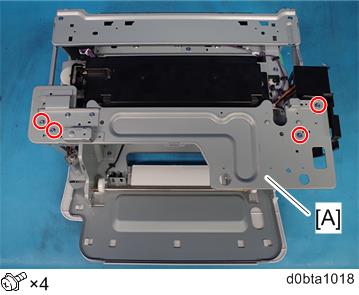

  6. Remove the top plate (rear) [A].

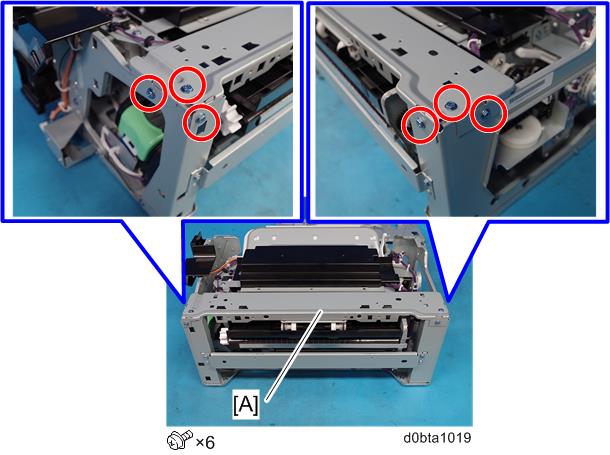

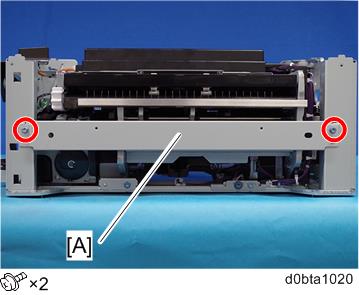

  7. Remove the stay [A].

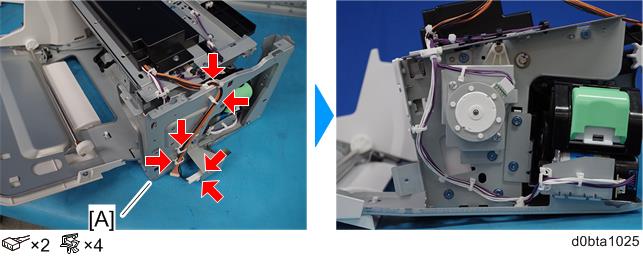

  8. Remove the harness guide [A].

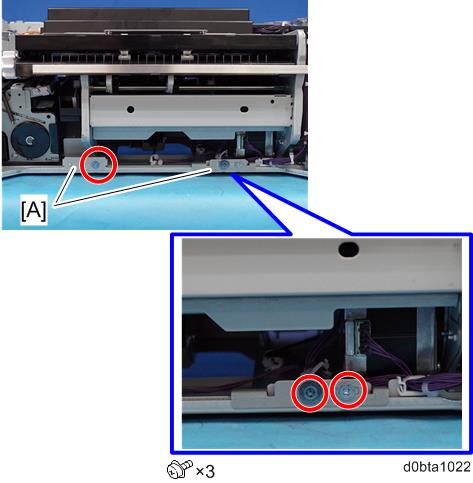

  9. Remove the brackets [A] from the back side.

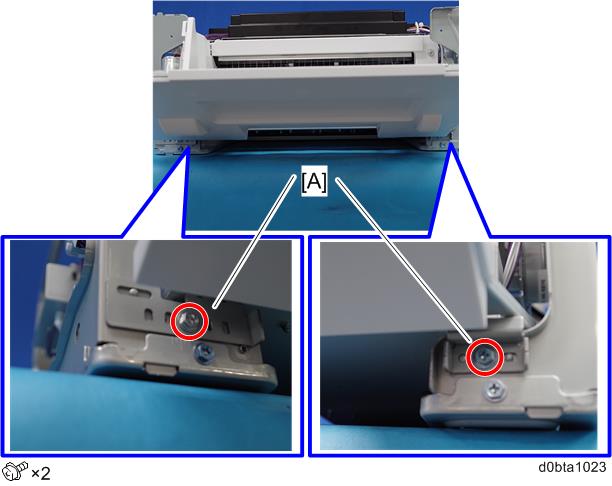

  10. Remove the brackets [A] from the front side.

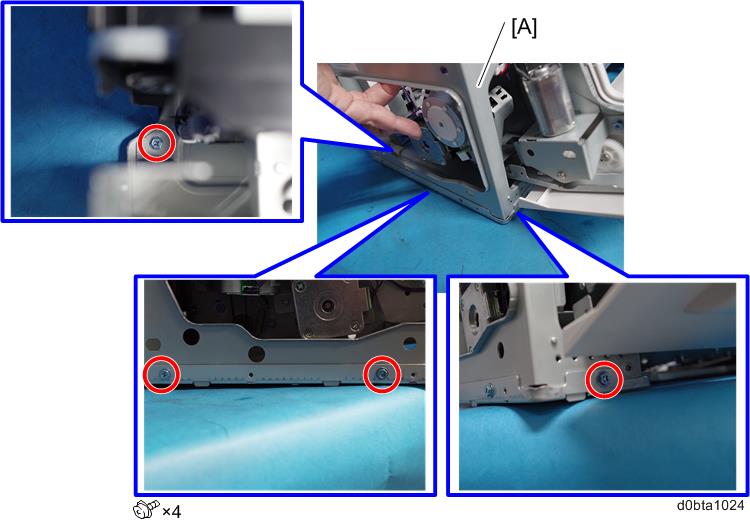

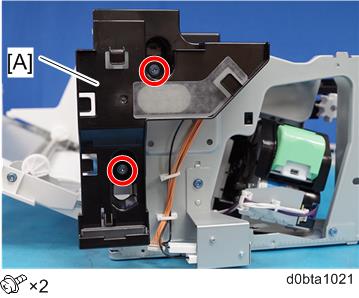

  11. Remove the left frame [A] while slightly lifting the finisher.
  12. Remove the right frame and bottom plate [A].
