1. Remove the right cover. (Right Cover)

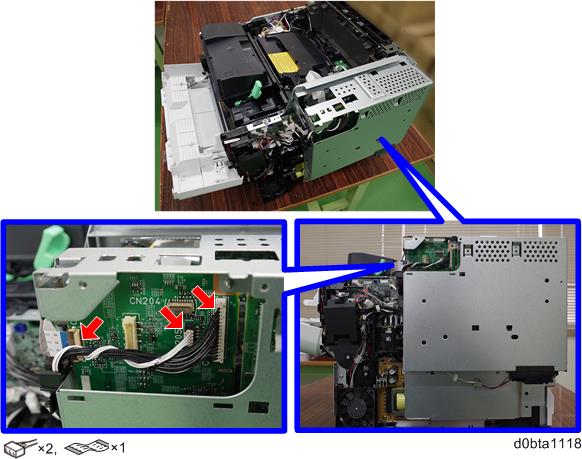

  2. Disconnect the flat cable and two connectors.

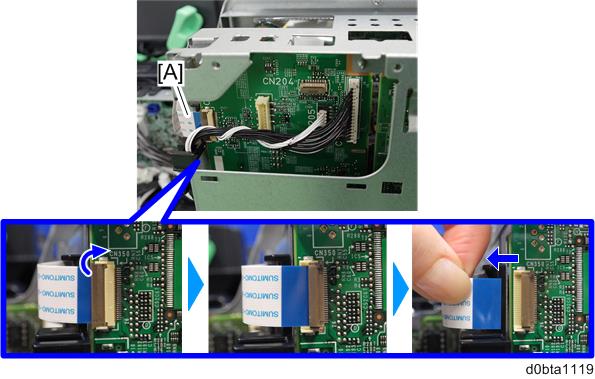

    • Make sure to open the flap before disconnecting the flat cable [A], as shown in the following pictures. Otherwise, the connector may be damaged.

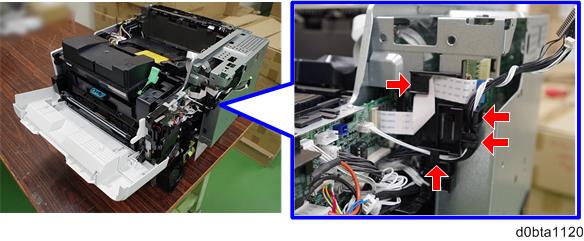

  3. Release the flat cable and harness from the harness guides.

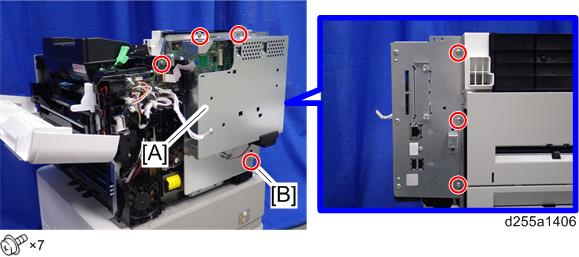

  4. Remove the seven screws from the controller box [A].

    • The screw [B] is a tapping screw. Be careful not to use the wrong screws when installing the controller box.

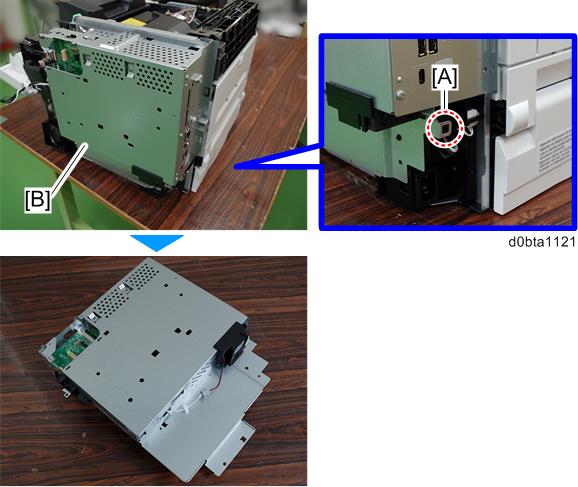

  5. Release the hook [A], and then remove the controller box [B].

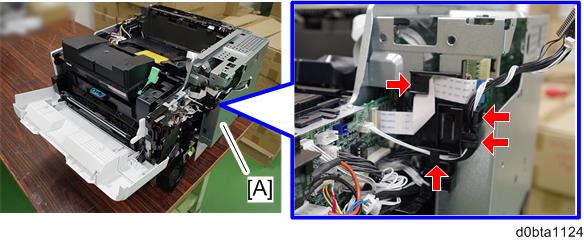

    • When installing the controller box [A], make sure to secure the harness and flat cable to the harness guides, as shown below.

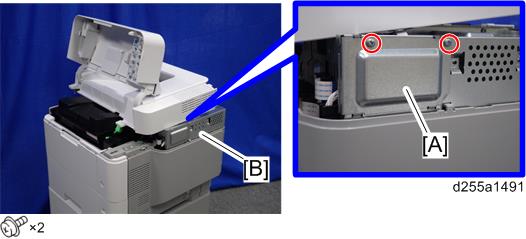

    • When installing the bracket [A] of the controller box [B], do not interpose the harness and the flat cable between the bracket and the controller box.
