IM 550F/600F/600SRF



IM 550F/600F

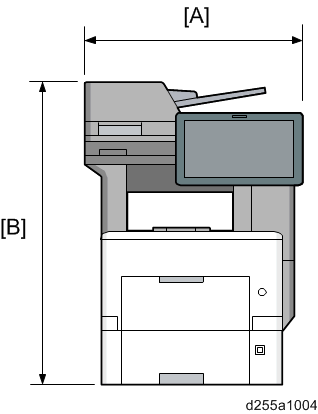

W×D×H (including DF and operation panel): 480 × 539 × 644 mm (18.9" × 21.3" × 25.4")

  • [A]: 480 mm (18.9")
  • [B]: 644 mm (25.4")

IM 600SRF

W×D×H (including DF and operation panel): 480 × 543 × 740 mm (18.9" × 21.4" × 29.2")

  • [A]: 480 mm (18.9")
  • [B]: 740 mm (29.2")
P 800/801



P 800

W×D×H: 420 × 410 × 346 mm (16.6" × 16.2" × 13.7")

  • [A]: 420 mm (16.6")
  • [B]: 346 mm (13.7")

P 801

W×D×H: 443 × 410 × 366 mm (17.5" × 16.2" × 14.5")

  • [A]: 443 mm (17.5")
  • [B]: 366 mm (14.5")
