• Turn OFF the main power, and unplug the machine power cord before starting the following procedure.
  • You need two or more persons to lift the main machine. The main machine is highly unstable when it is lifted by one person and may cause injury or property damage.
  • Be sure to hold the specified positions when lifting the machine.

  1. Pull out the paper feed tray [A] of the optional paper feed unit.
  2. Remove all tape and retainers.

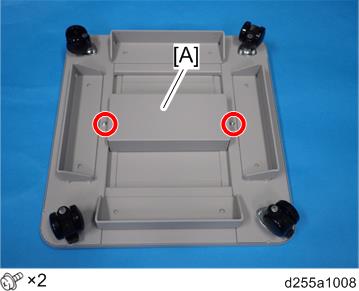

  3. Turn over the caster table, and then remove the accessory bracket [A].

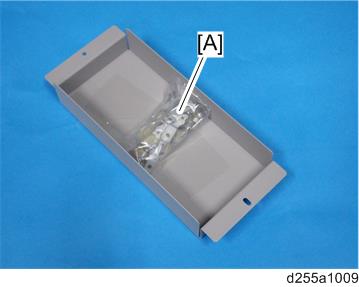

  4. Remove the package [A] (which contains joints, brackets, and screws) from the accessory bracket.

  5. Check the following items in the package.

    No.

    Description

    Q’ty

    1

    Joint bracket A

    2

    2

    Joint bracket B

    1

    3

    Joint bracket C

    4

    4

    Joint bracket D

    4

    5

    Joint bracket E

    4

    6

    Screws: polished round/spring (M4×10)

    8

    7

    Hexagon flange screws (M4×8)

    3

    8

    Tapping bind screws (3×8)

    4

    9

    Screws (M3×6)

    8

  6. Install the accessory bracket on the caster table.
    Use the screws removed in Step 3.

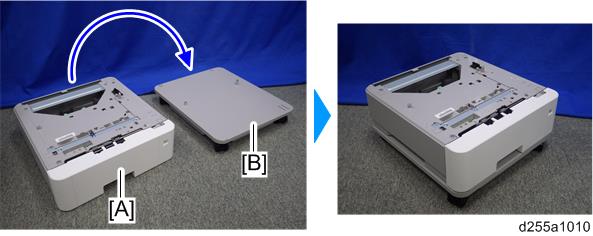

  7. Install the optional paper feed unit [A] on the caster table [B].

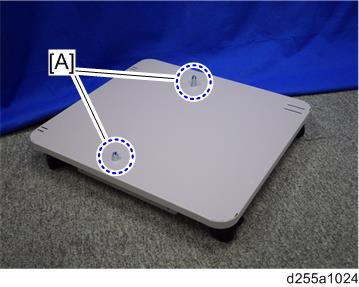

    • There are two upright pins [A] on the caster table. Align them with the holes in the underside of the optional paper feed unit.

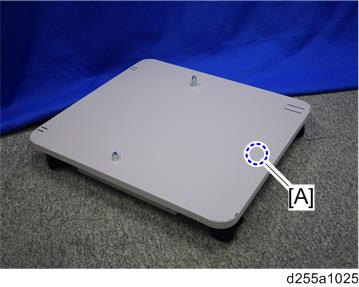

    • The hole [A] in the caster table indicates the front side of the caster table.

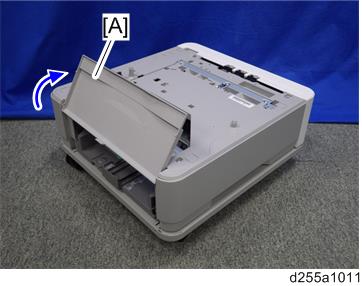

  8. Open the rear cover [A] of the optional paper feed unit.

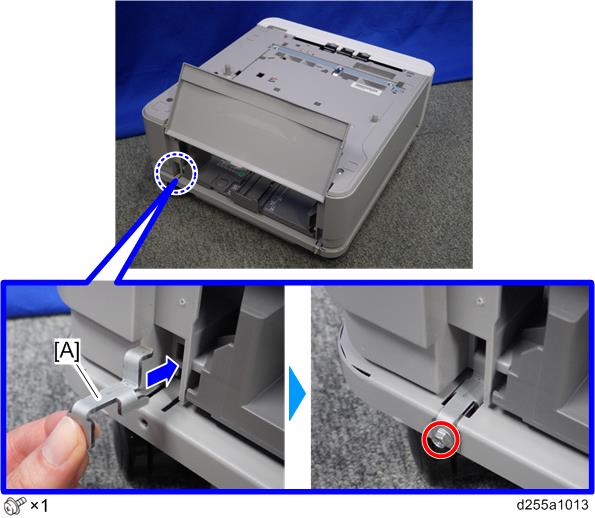

  9. Install the joint bracket A [A] on the rear side with the hexagon flange screw (M4×8).

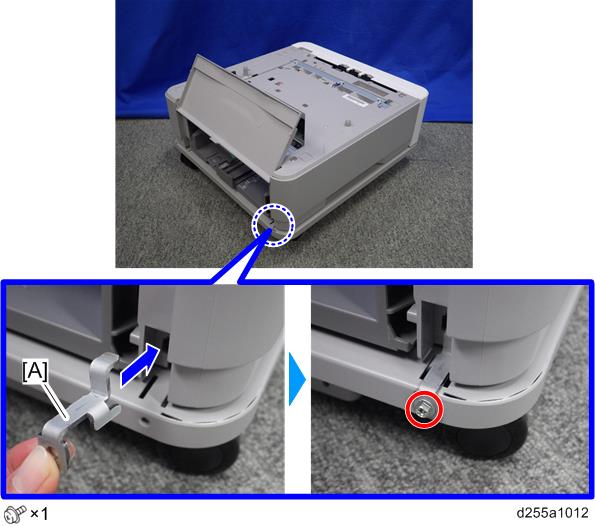

  10. Install the joint bracket A [A] on the rear side with the hexagon flange screw (M4×8).
  11. Close the rear cover of the optional paper feed unit.

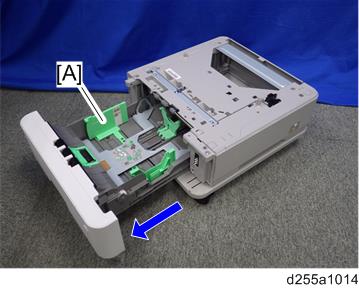

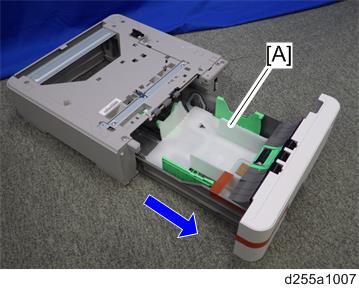

  12. Remove the paper feed tray [A] by pulling it out.

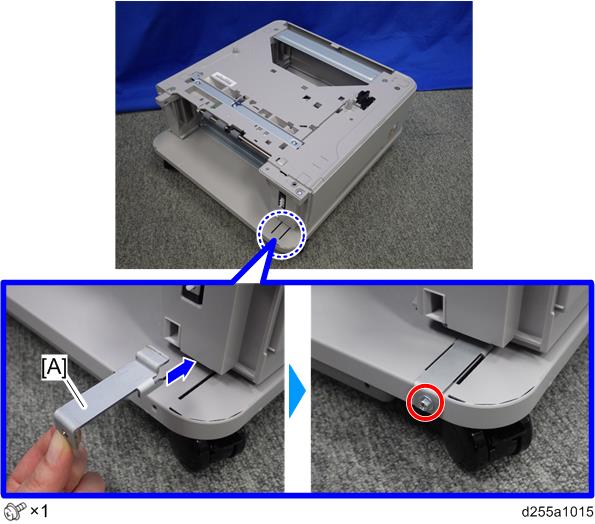

  13. Install the joint bracket B [A] on the front side with the hexagon flange screw (M4×8).
