No. | Item | Machine Code | IM 550F/600F/600SRF | P 800/801 |
|---|---|---|---|---|

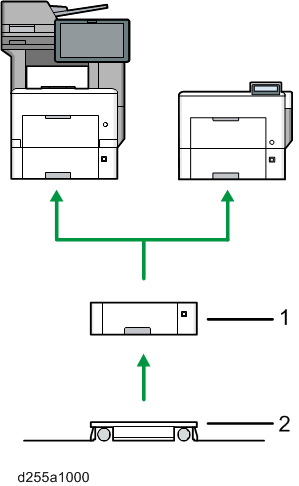

1 | Paper Feed Unit PB1160 *1 | D3G7-01 (NA/EU/AP) | Yes | Yes |
2 | Caster Table Type M40 | D0C7-01 | Yes | Yes |
- | OCR Unit Type M13 | D3AC-23 (NA) D3AC-24 (EU) D3AC-25 (AP) | Yes | No |
- | IPDS Unit Type M40 | M0CK-04 (NA) M0CK-05 (EU) M0CK-06 (AP) | Yes | Yes |
- | XPS Direct Print Option Type M40 | M0CK-01 (NA) M0CK-02 (EU) M0CK-03 (AP) | Yes | Yes |
- | VM CARD Type M37 | D3GF-32 | Yes | Yes |
- | Device Server Option Type M37 | D3GF-10 (NA) D3GF-11 (EU/AP) | Yes | Yes |
- | IEEE 1284 Interface Board Type M19 | D3C0-17 | Yes | Yes |
- | IEEE 802.11 Interface Unit Type M24 | M500-08 | Yes | Yes |
- | File Format Converter Type M19 | D3BR-04 | Yes | No |
- | Enhanced Security HDD Option Type M10 | D792-09 | Yes | Yes |
- | Hard Disk Drive Option Type P8 | M500-05 | No | Yes |
- | NFC Card Reader Type M24 | D3CP-08 | Yes | No |
- | DataOverwriteSecurity Unit Type M19 | D3BS-03 | Yes | No |
- | Optional Counter Interface Unit Type M12 | B870-21 | Yes | No |
- | Fax Connection Unit Type M37 | D3GF-15 (NA) D3GF-16 (EU) D3GF-17 (AP) | Yes | No |
| - | Fax Memory Unit M19 64MB | D3BZ-17 | Yes | No |
| - | PostScript3 Unit Type M40 | D3FL01 (NA) D3FL02 (EU) D3FL03 (AP) | Yes | No |
| - | PostScript3 Unit Type P19 | M0CK07 (NA) M0CK08 (EU) M0CK09 (AP) | No | Yes |
*1 You can attach up to four paper feed units.
- The following options are installed by the end user. For instructions on installing these options, please refer to the operating instructions "Setup".
- Paper Feed Unit PB1160
- Caster Table Type M40
- IPDS Unit Type M40
- XPS Direct Print Option Type M40
- VM CARD Type M37
- Device Server Option Type M37
- IEEE 1284 Interface Board Type M19
- IEEE 802.11 Interface Unit Type M24
- File Format Converter Type M19
- PostScript3 Unit Type M40
- PostScript3 Unit Type P19
- Service installation is required for installing Paper Feed Unit PB1160 with Caster Table Type M40 depending on the machine configuration. For details, please refer to Paper Feed Unit PB1160.
