1. Remove the left upper cover. (Left Upper Cover)

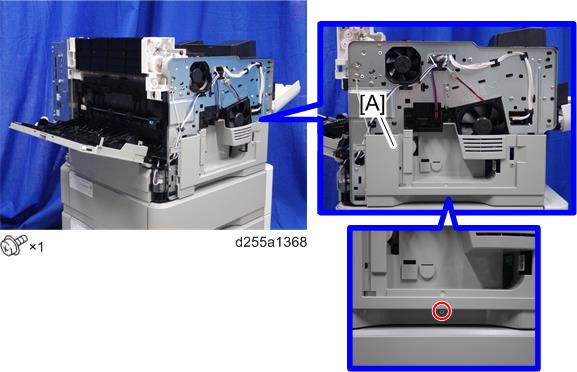

  2. Remove the screw holding the left lower cover [A].

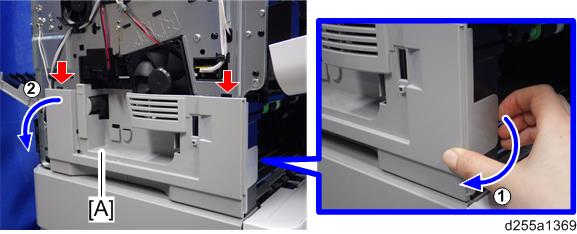

  3. Release the hook by opening the right side of the left lower cover as shown below, and then remove the left lower cover [A]. (hook×3)

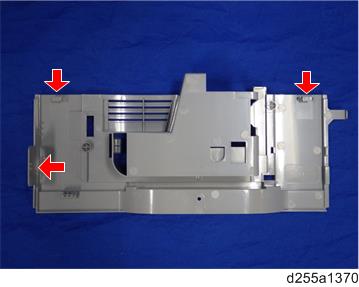

  • Be careful not to damage the hooks on the inside of the left lower cover when you remove or install the left lower cover.
