- Remove the following covers.
- IM 550F/600F/600SRF: Front cover (Front Cover), Right lower cover (Right Lower Cover (IM 550F/600F)), Left middle cover (Left Middle Cover)
- P 800/801: Front cover (Front Cover)

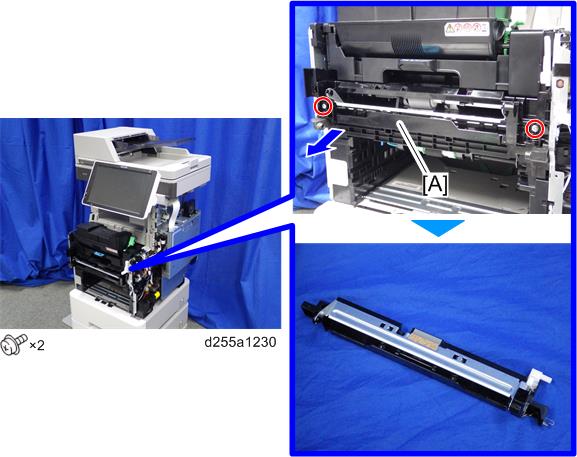

Remove the bypass bottom plate unit [A].

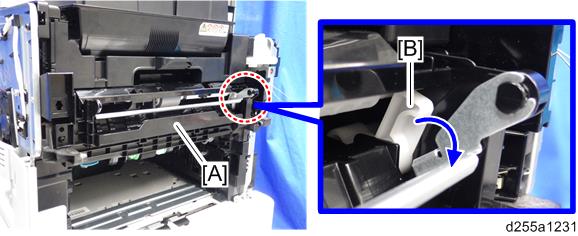

- When removing the bypass bottom plate unit [A], rotate the lever [B].
- When removing the bypass bottom plate unit [A], rotate the lever [B].

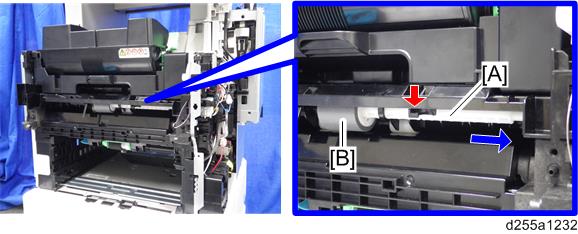

- Slide the shaft [A] of the bypass tray paper feed roller [B] to the right while releasing the hook.

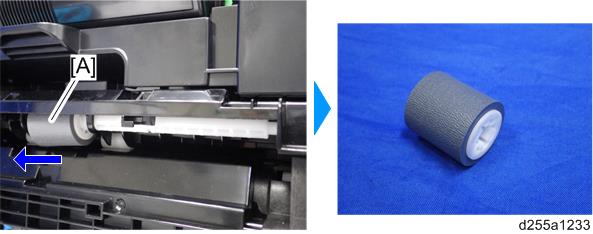

- Remove the bypass tray paper feed roller [A].
