IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Paper Exit Motor (M13)
Remove the left upper cover. (
Left Upper Cover (IM 550F/600F)
)

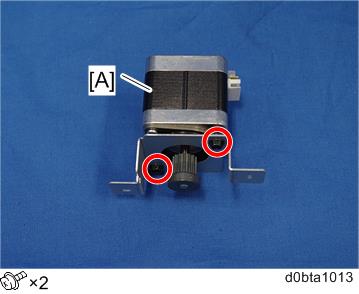

Remove the finisher paper exit motor bracket [A].

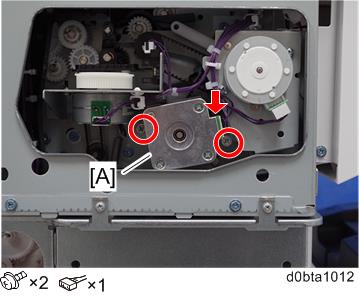

Remove the finisher paper exit motor (M13) [A].
