1. Remove the drum unit. (Drum Unit)

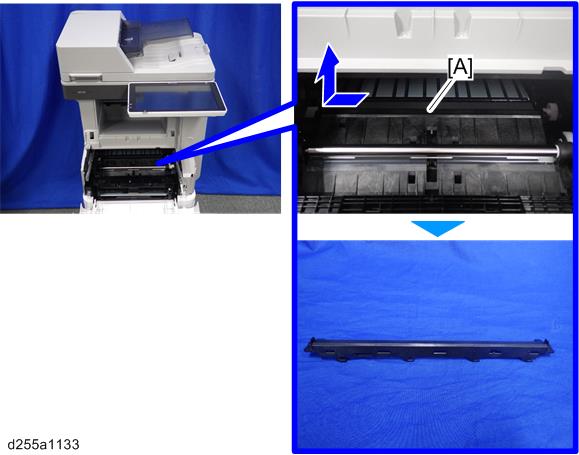

  2. Remove the transfer guide plate [A] by sliding it to the left.

    • Be careful not to damage the hooks on the transfer guide plate when you remove or install the transfer guide plate.

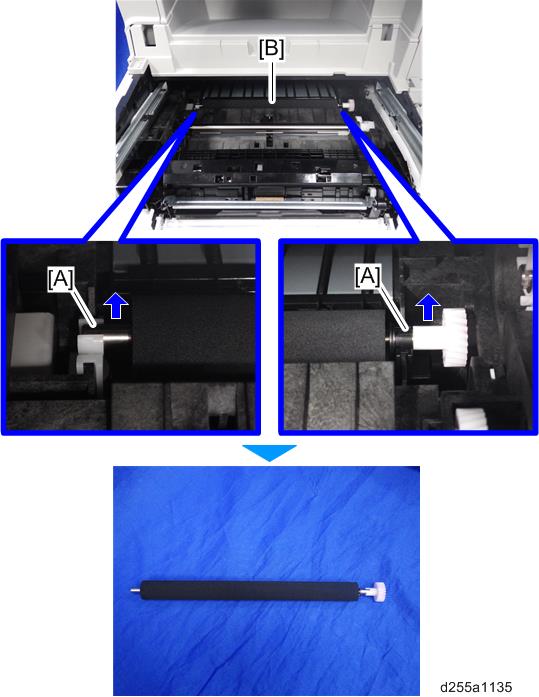

  3. Remove the shaft [A] of the transfer roller [B] from the bearings on the right and left sides with a flathead screwdriver.
  4. Remove the transfer roller [B].
