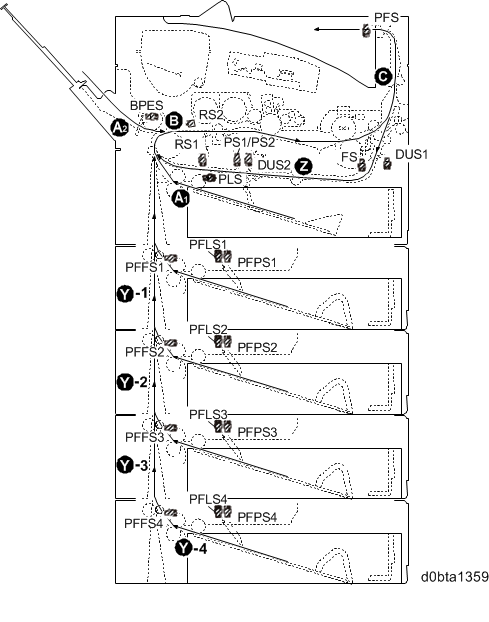

Abbreviation | Name | Abbreviation | Name |
|---|---|---|---|
BPES | Bypass paper end sensor (S9) | PFLS4 | Paper feed tray limit sensor 4 (S7)*1 |
DUS1 | Duplex sensor 1 (S16) | PFPS1 | Paper end sensor 1 (S11)*1 |
DUS2 | Duplex sensor 2 (S17) | PFPS2 | Paper end sensor 2 (S12)*1 |
FS | Fusing sensor (S15) | PFPS3 | Paper end sensor 3*1 |
PFFS1 | Paper feed sensor 1*1 | PFPS4 | Paper end sensor 4*1 |
PFFS2 | Paper feed sensor 2*1 | PFS | Paper exit full sensor (S8) |
PFFS3 | Paper feed sensor 3*1 | PLS | Paper feed tray limit sensor (S7) |
PFFS4 | Paper feed sensor 4*1 | PS1 | Paper end sensor 1 (S11) |
PFLS1 | Paper feed tray limit sensor 1 (S7)*1 | PS2 | Paper end sensor 2 (S12) |
PFLS2 | Paper feed tray limit sensor 2 (S7)*1 | RS1 | Registration sensor 1 (S13) |
PFLS3 | Paper feed tray limit sensor 3 (S7)*1 | RS2 | Registration sensor 2 (S14) |
*1 Optional paper feed unit
