1. Remove the right upper cover. (Right Upper Cover (IM 600SRF))
  2. Remove the left upper cover. (Left Upper Cover (IM 600SRF))

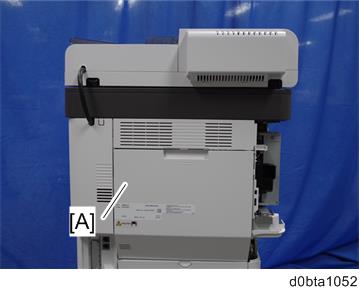

  3. Open the finisher rear cover [A].

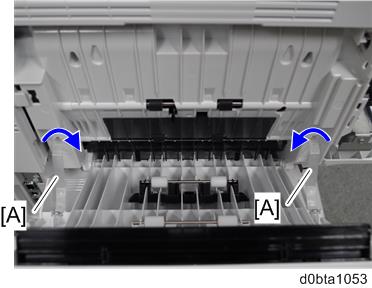

  4. Release the belts [A] from the mainframe by twisting the ends.

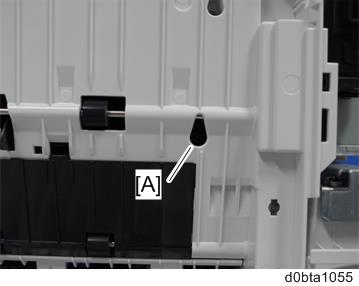

  5. Put a screwdriver through the hole [A] and loosen the screw that fixes the finisher.
  6. Make a note of the position of screw [A], and then remove it. Then, slide the finisher [B] to the left as far as it goes.

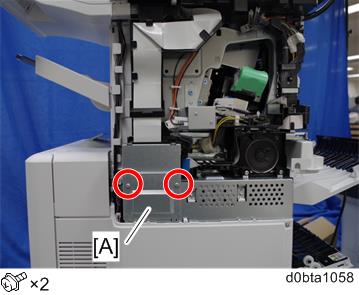

  7. Remove the bracket [A].

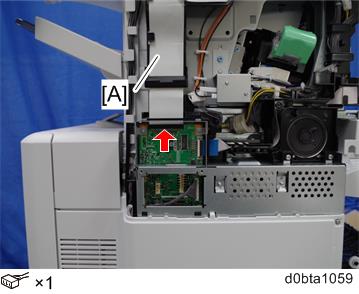

  8. Disconnect the flat cable [A].

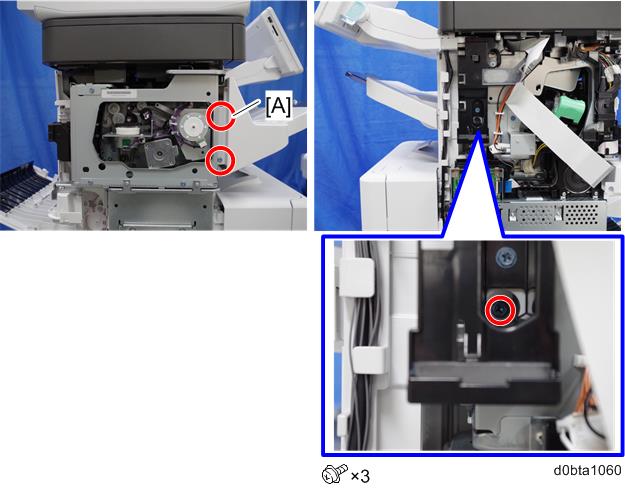

  9. Remove three screws.

    Depending on the machine, the screw [A] may not be present.

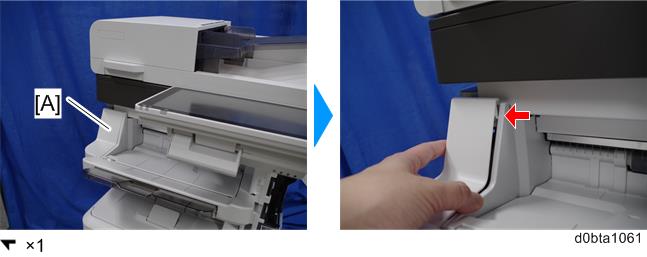

  10. Release the hook of the finisher output tray unit [A].

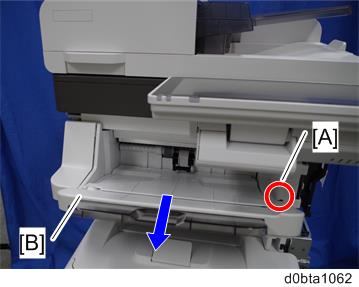

  11. Release the overlapping part [A] and remove the finisher output tray unit [B].

When reassembling, return the finisher to the previous position by sliding the finisher until the screw removed in step 6 can be inserted in the same position as before.
