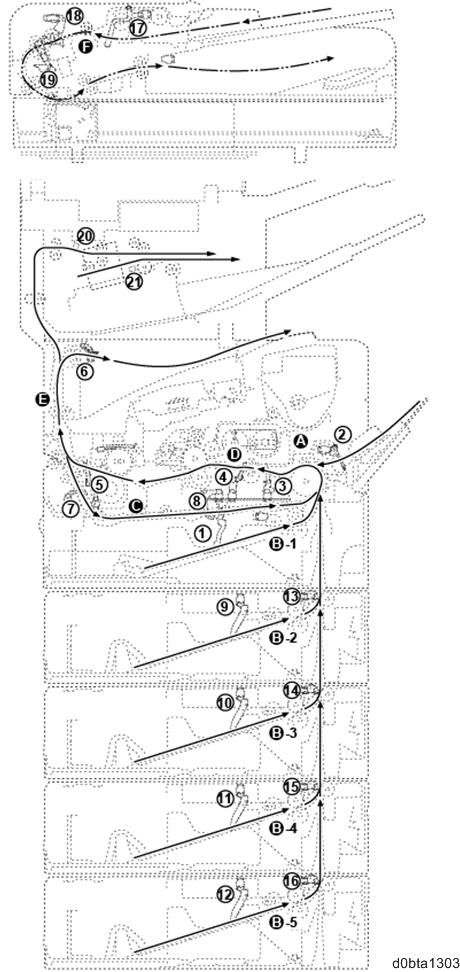

| No. | Name | No. | Name |
|---|---|---|---|
| 1 | Paper sensor | 12 | PF Paper sensor 4*1 |
| 2 | MP paper sensor | 13 | PF conveying sensor 1*1 |
| 3 | Registration sensor 3 | 14 | PF conveying sensor 2*1 |
| 4 | Registration sensor 2 (S14) | 15 | PF conveying sensor 3*1 |
| 5 | Exit sensor | 16 | PF conveying sensor 4*1 |
| 6 | Paper full sensor | 17 | DF original sensor (S1) |
| 7 | Duplex sensor 1 (S16) | 18 | DF timing sensor |
| 8 | Duplex sensor 2 (S17) | 19 | DF registration sensor (S2) |
| 9 | PF paper sensor 1*1 | 20 | Finisher entrance Sensor |
| 10 | PF paper sensor 2*1 | 21 | Finisher paper exit sensor (S26) |
| 11 | PF paper sensor 3*1 |
*1 Optional paper feed unit
