IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Staple Tray Paper Sensor (S25)
Remove the finisher frames. (
Finisher Frames
)

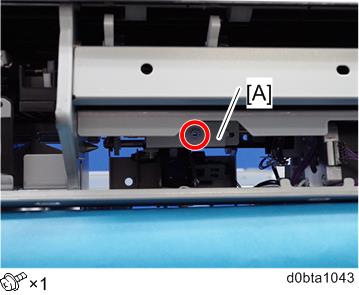

Remove the finisher staple tray paper sensor bracket [A].

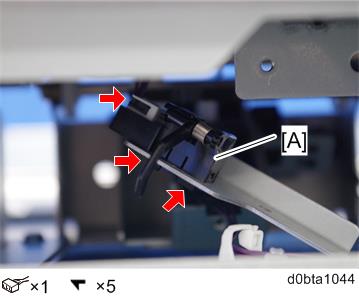

Remove the finisher staple tray paper sensor (S25) [A].
