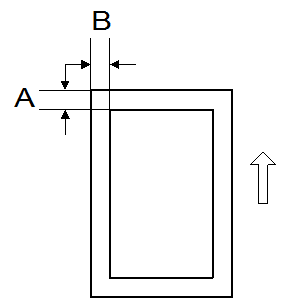

A: Leading Edge Registration (4 ± 2.5 mm)

B: Side-to-side Registration (4 ± 2.5 mm)

  1. Check the leading edge registration [A] for each paper feed station, and adjust them using SP1-001.

    Paper Feed Station

    SP No.

    Adjustment Range

    Tray 1 (Main unit)

    SP1-001-001

    4±2.5 mm

    Tray 2 (Optional tray)

    SP1-001-002

    Tray 3 (Optional tray)

    SP1-001-003

    Tray 4 (Optional tray)

    SP1-001-004

    Tray 5 (Optional tray)

    SP1-001-005

    Bypass Tray

    SP1-001-006

    Duplex Tray

    SP1-001-007

  2. Check the side-to-side registration [B] for each paper feed station, and adjust them using SP1-002.

    Paper Feed Station

    SP No.

    Adjustment Range

    Tray 1 (Main unit)

    SP1-002-001

    4±2.5 mm

    Tray 2 (Optional tray)

    SP1-002-002

    Tray 3 (Optional tray)

    SP1-002-003

    Tray 4 (Optional tray)

    SP1-002-004

    Tray 5 (Optional tray)

    SP1-002-005

    Bypass Tray

    SP1-002-006

    Duplex Tray

    SP1-002-007
