IM 550F/600F/600SRF

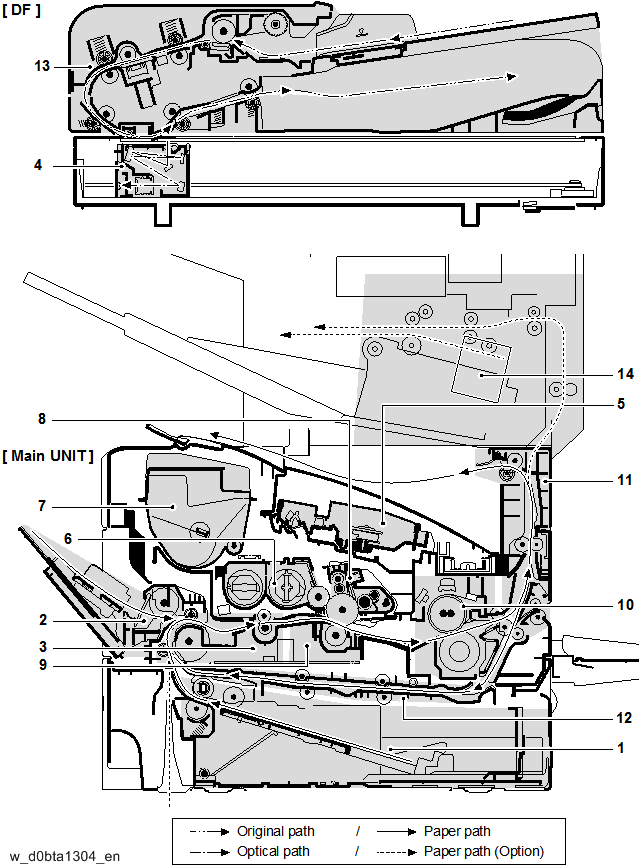

| No. | Name | No. | Name |
|---|---|---|---|
| 1 | Paper feed tray | 8 | Drum unit |
| 2 | Bypass tray unit | 9 | Transfer unit |
| 3 | Transportation section | 10 | Fusing unit |
| 4 | Scanner unit | 11 | Paper exit unit |
| 5 | Laser unit | 12 | Duplex unit |
| 6 | Development unit | 13 | DF |
| 7 | Toner cartridge | 14 | Internal Finisher*1 |
*1 IM 600SRF only.
P 800/801

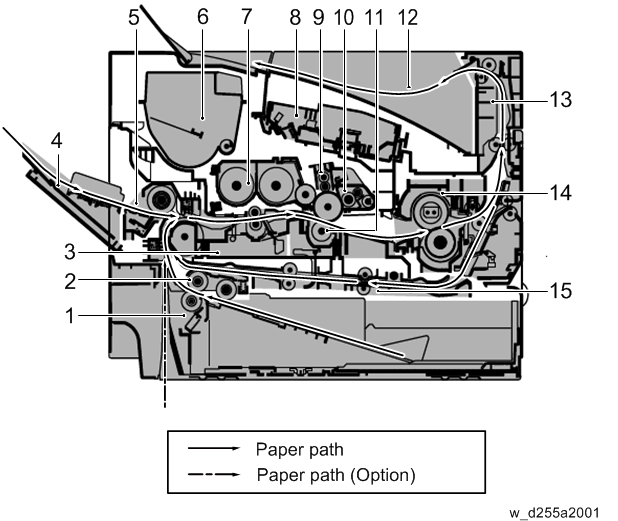

No. | Name | No. | Name |
|---|---|---|---|
1 | Paper feed tray | 9 | Charge roller |
2 | Paper feed unit | 10 | Drum unit |
3 | Transportation section | 11 | Transfer unit |
4 | Bypass tray | 12 | Paper exit tray |
5 | Bypass tray unit | 13 | Paper exit unit |
6 | Toner cartridge | 14 | Fusing unit |
7 | Development unit | 15 | Duplex unit |
8 | Laser unit |
