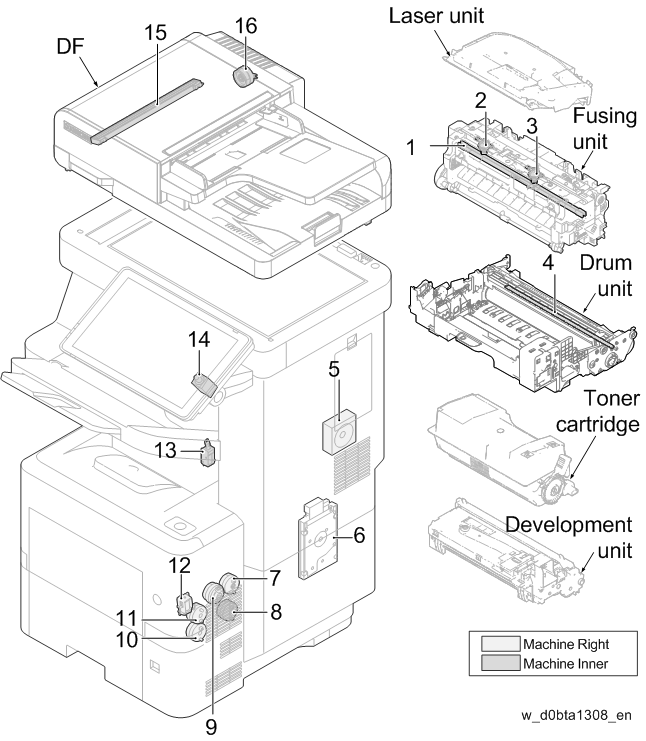

IM 550F/600F/600SRF
| No. | Name | No. | Name |
|---|---|---|---|
| 1 | Fusing lamps | 9 | Registration clutch (CL3) |
| 2 | Fusing thermostat 1 (End) (TS1) | 10 | Paper feed clutch (CL4) |
| 3 | Fusing thermostat 2 (Center) (TS2) | 11 | Transport clutch (CL2) |
| 4 | Quenching lamp | 12 | Bypass solenoid (SOL2) |
| 5 | Speaker (OT1) | 13 | Inverter solenoid (SOL1) |
| 6 | HDD (OT2) | 14 | Finisher pick-up solenoid (SOL3)*1 |
| 7 | Development clutch (CL5) | 15 | DF CIS (PCB27) |
| 8 | Duplex clutch (CL1) | 16 | DF paper feed clutch (CL6) |
*1 IM 600SRF only.

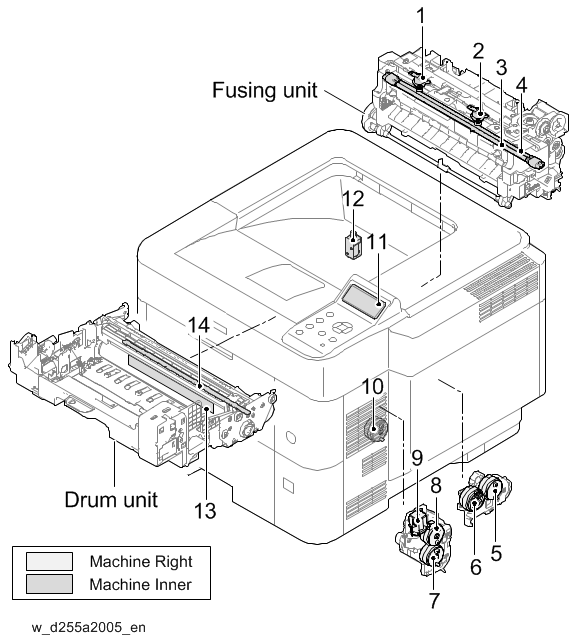

P 800/801
No. | Name | No. | Name |
|---|---|---|---|
1 | Fusing thermostat 1 (End) (TS1) | 8 | Transport clutch (CL2) |
2 | Fusing thermostat 2 (Center) (TS2) | 9 | Bypass solenoid (SOL2) |
3 | Fusing lamp 1 | 10 | Duplex clutch (CL1) |
4 | Fusing lamp 2 | 11 | Control panel |
5 | Development clutch (CL5) | 12 | Inverter solenoid (SOL1) |
6 | Registration clutch (CL3) | 13 | Drum heater PCB (AP Only) (PCB12) |
7 | Paper feed clutch (CL4) | 14 | Quenching lamp |
