1. Remove the finisher frames. (Finisher Frames)
  2. Remove the finisher main board cover. (Finisher Main Board (PCB29))
  3. Remove the finisher main board bracket [A].
  4. Remove the finisher top front cover [A].

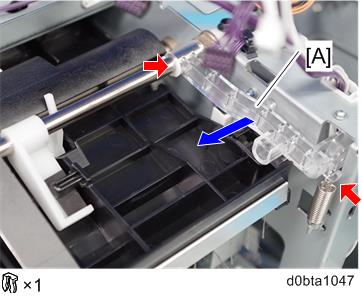

  5. Slide the exit guide plate stopper [A] to the left (spring x 1).

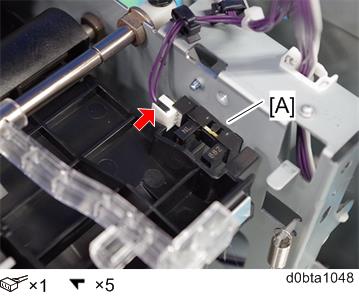

  6.  Remove the finisher exit guide plate HP sensor (S27) [A].
