1. Pass the flat cable through the hole [A].
  2. Fold the flat cable along the red line [B].
  3. Pass the flat cable through the hole [C].
    Do not fold the flat cable in the [D] area.
  4. While keeping the red line in the [A] position, pull the flat cable in the direction of the arrow and loosen the [B] point.

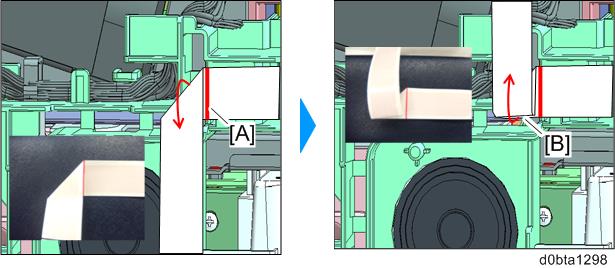

  5. Fold the flat cable by aligning the edge of the cable with the red line [A].
  6. Fold the flat cable along the edge [B].

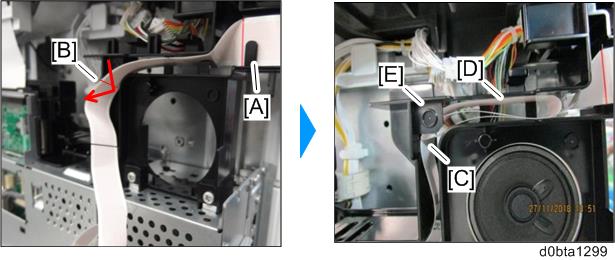

  7. Pass the flat cable behind the hook [A].
  8. Fold the flat cable along the red line [B].
  9. While keeping the red line in the [C] position, make the flat cable into a Z-shape [D] and pass the flat cable behind the hook [E].
  10. Pass the flat cable behind cable guide hook [C].
  11. Pass the flat cable [A] through the cores [D].

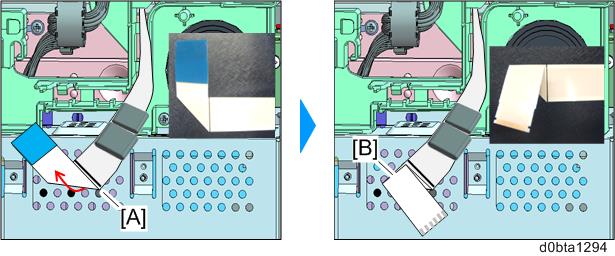

  12. Fold the flat cable by aligning the edge of the cable with the black line [A].
  13. Fold the flat cable along the edge [B].

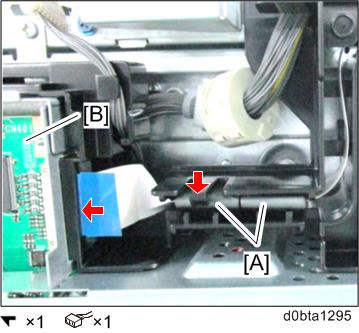

  14. Set the cores [A] in the holder and connect the flat cable to the BiCU (PCB16) [B].
