IM 550F/600F/600SRFP 800/801
Installation
Paper Feed Unit PB1160
Accessory Check
No.
Description
Q’ty
1

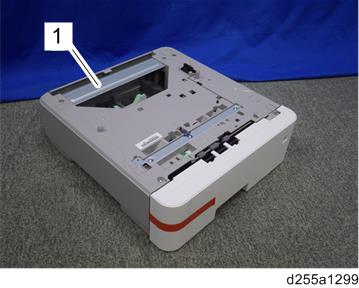

Paper feed unit
1
-
Manual: Installation Guide
1
-
EMC address decal
1
