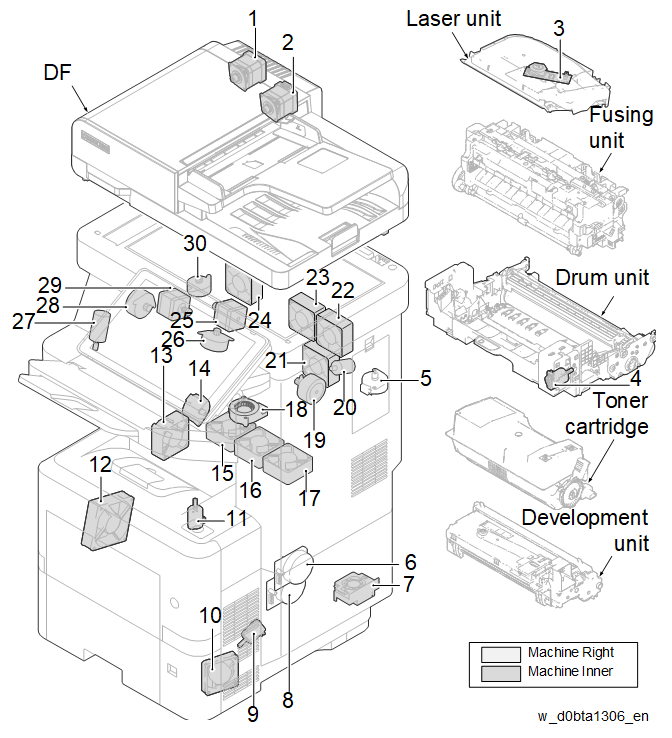

IM 550F/600F/600SRF
| No. | Name | No. | Name |
|---|---|---|---|
| 1 | DF paper feed motor (M3) | 16 | Smell Reduction Fan (FAN5)*1 |
| 2 | DF paper conveying motor (M1) | 17 | Smell Reduction Fan (FAN5)*1 |
| 3 | Polygon motor (M5) | 18 | Center Fan (FAN6) |
| 4 | Toner supply motor (M7) | 19 | Finisher exit guide plate motor (M17)*1 |
| 5 | Scanner motor (M4) | 20 | Finisher stapler motor (M19)*1 |
| 6 | Drum motor (M6) | 21 | Smell Reduction Fan (FAN5)*2 |
| 7 | Controller box fan (FAN4) | 22 | Smell Reduction Fan (FAN5)*1 |
| 8 | Main motor (M11) | 23 | Smell Reduction Fan (FAN5)*1 |
| 9 | Paper feed tray lift motor (M8) | 24 | Smell Reduction Fan (FAN5)*1 |
| 10 | PSU fan (FAN3) | 25 | Finisher transport motor (M12)*1 |
| 11 | Fusing pressure release motor (M9) | 26 | Finisher jogger motor (M16)*1 |
| 12 | Development fan (FAN2) | 27 | Finisher tray lift motor (M18)*1 |
| 13 | Laser fan (FAN1) | 28 | Finisher gathering roller motor (M14)*1 |
| 14 | Paper exit motor (M10) | 29 | Finisher paper exit motor (M13)*1 |
| 15 | Smell Reduction Fan (FAN5)*1 | 30 | Finisher shift roller motor (M15)*1 |
*1 IM 600SRF only.
*2 IM 550F/600F only.

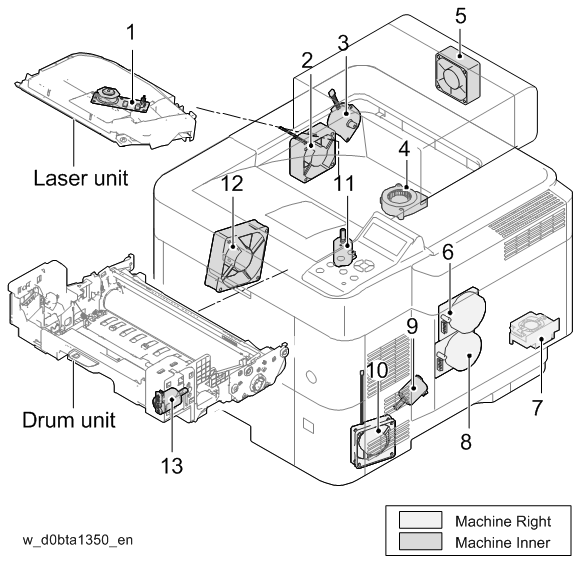

P 800/801
No. | Name | No. | Name |
|---|---|---|---|
1 | Polygon motor (M5) | 8 | Main motor (M11) |
2 | Laser fan (FAN1) | 9 | Paper feed tray lift motor (M8) |
3 | Paper exit motor (M10) | 10 | PSU fan (FAN3) |
4 | Rear exhaust fan (FAN6) | 11 | Fusing pressure release motor (M9) |
5 | Smell Reduction Fan (FAN5) | 12 | Development fan (FAN2) |
6 | Drum motor (M6) | 13 | Toner supply motor (M7) |
| 7 | Controller box fan (FAN4) |
