The paper feeder conveys paper from the cassette to the printer. Cassette can hold up to 500 sheets of paper.
Paper is fed from the paper feeder by the rotation of the pickup roller and paper feed roller. The retard roller prevents multiple sheets from being fed at one time, via the torque limiter.

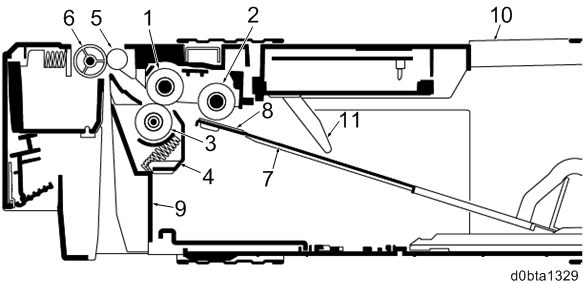

| No. | Name | No. | Name |
|---|---|---|---|
| 1 | Paper feed roller | 7 | Bottom plate |
| 2 | Pickup roller | 8 | Bottom pad |
| 3 | Retard roller | 9 | Cassette base |
| 4 | Retard roller guide | 10 | Upper cover |
| 5 | Conveying roller | 11 | Paper gauge sensor (actuator) |
| 6 | Conveying pulley |
