IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
Internal Finisher
Finisher Tray Lower Limit Sensor (S22)
Remove the finisher output tray unit. (
Finisher Output Tray Unit
)

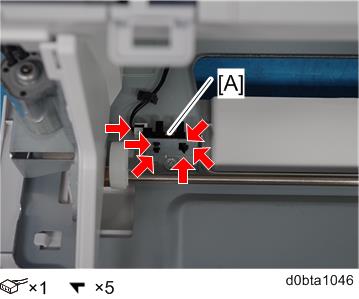

Remove the finisher tray lower limit sensor (S22) [A].
