IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
DF (IM 550F/600F/600SRF Only)
DF double feed detector TX PCB (PCB25)
Remove the DF top cover. (
DF Top Cover
)

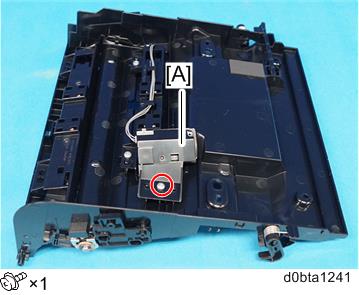

Remove the Bracket [A].

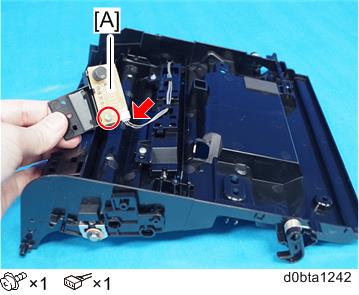

Remove the DF double feed detector TX PCB (PCB25) [A].
