1. Remove the finisher frames. (Finisher Frames)
  2. Remove the finisher main board cover. (Finisher Main Board (PCB29))

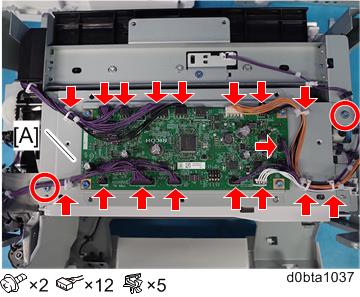

  3. Remove the finisher main board bracket [A].
  4. Remove the finisher top front cover [A].
  5. Remove the paper exit cover [A].
    Pull up the finisher paper sensor actuator [B] when removing the guide plate.

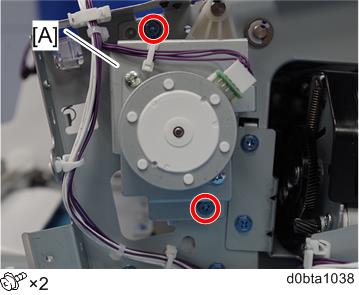

  6. Remove the finisher exit guide plate motor bracket [A].
  7. Remove the paper exit roller shaft [A] (bushing x 2).
  8. Remove the finisher paper exit sensor (S26) [A].
