1. Remove the rear center stay. (Rear Center Stay (IM 550F/600F Only))

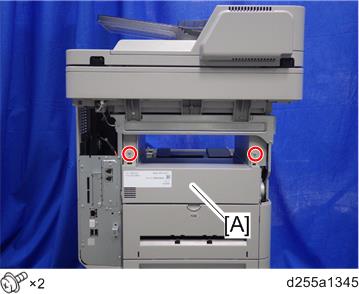

  2. Remove the two screws from the paper exit cover [A].

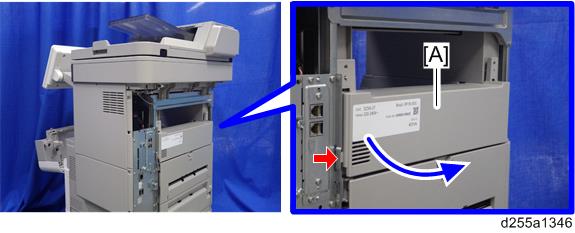

  3. Remove the paper exit cover [A] from the right side. (hook×1)

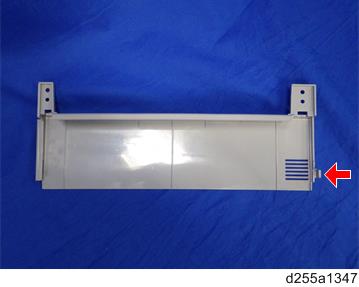

  • Be careful not to damage the hook at the rear of the paper exit cover when you remove or install the paper exit cover.
