The duplex unit consists of the transport path which sends the paper from the paper exit unit to the transportation section when duplex printing.

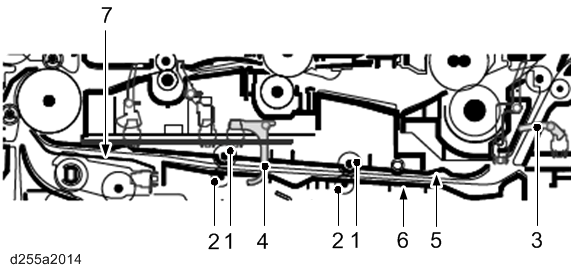

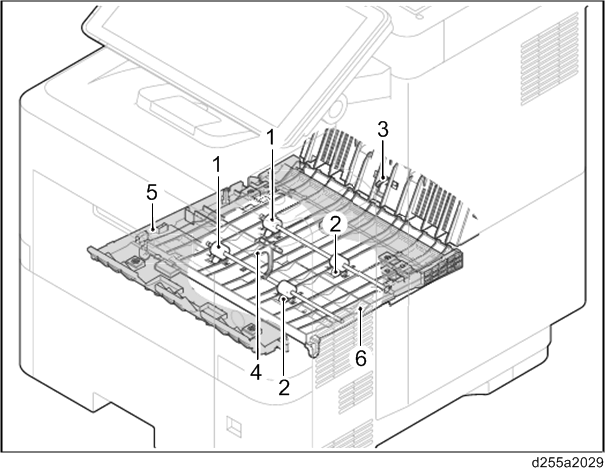

No. | Name | No. | Name |
|---|---|---|---|
1 | Duplex rollers | 5 | Duplex base |
2 | Duplex idle rollers | 6 | Duplex lower guide |
3 | Actuator (duplex sensor 1 (S16)) | 7 | Feed upper guide |
4 | Actuator (duplex sensor 2 (S17)) |
