If the leading edge/side-to-side registration cannot be adjusted within the specifications, adjust the leading/left side edge blank margin.

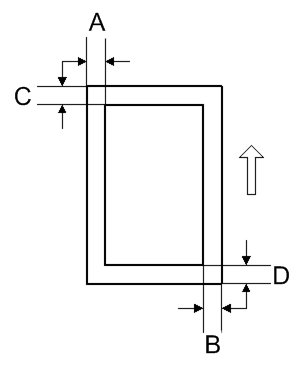

A: Left Edge Blank Margin

B: Right Edge Blank Margin

C: Leading Edge Blank Margin

D: Trailing Edge Blank Margin

  1. Check the trailing edge [A], right edge [B], leading edge [C], left edge [D] blank margins, and adjust them using the following SP modes.

    Edge

    SP No.

    Adjustment Range

    Left Edge

    SP2-103-001

    4±2.5 mm

    Right Edge

    SP2-103-002

    Leading Edge

    SP2-103-003

    Trailing Edge

    SP2-103-004
