1. Remove the internal finisher. (Internal Finisher)
  2. Remove the controller box. (Controller Box (IM 550F/600F/600SRF))

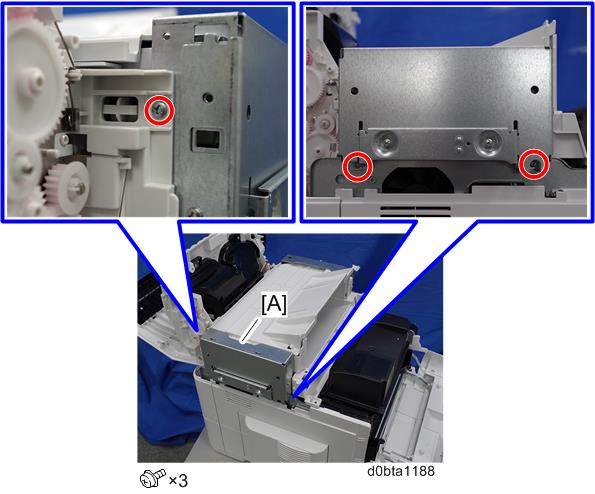

  3. Remove the bracket [A].

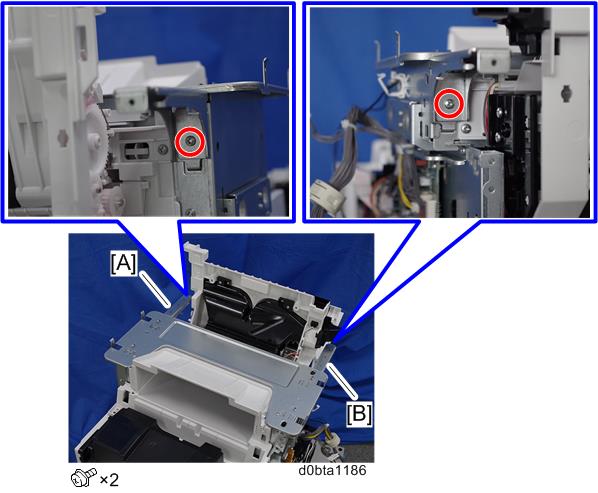

  4. Remove the brackets [A] [B].

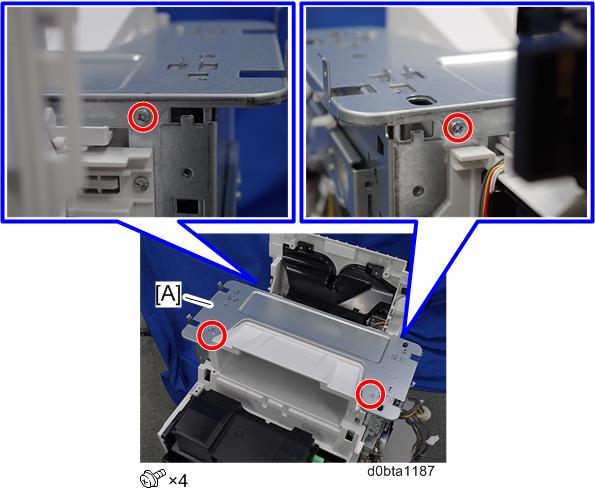

  5. Remove the plate [A].

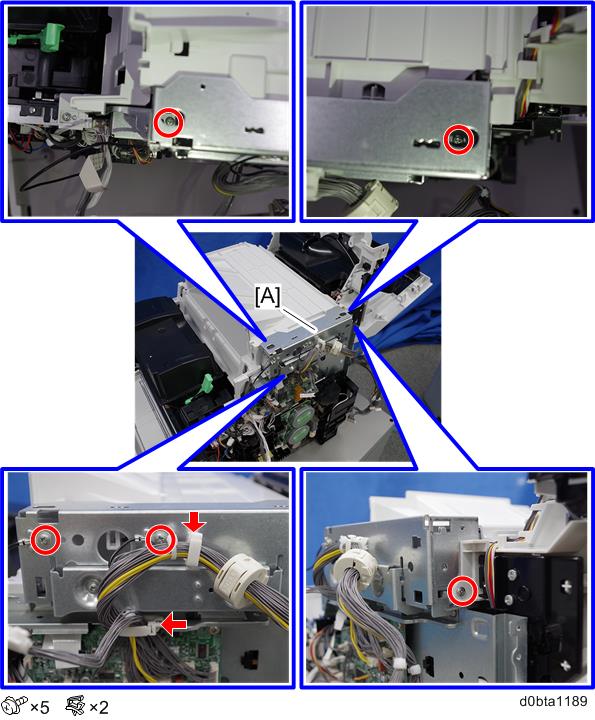

  6. Remove the left cover [A].

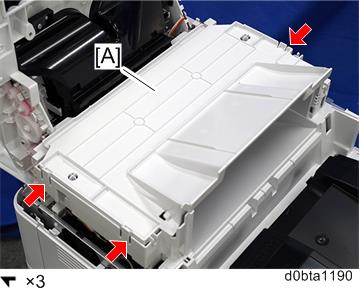

  7. Remove the right cover [A].

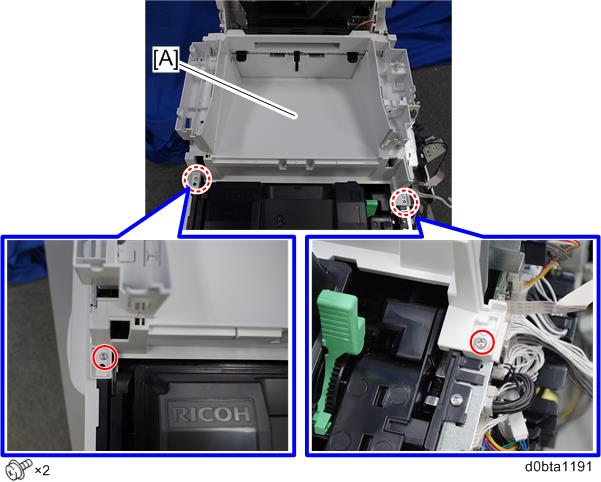

  8. Remove the cover [A].

  9. Remove the paper exit tray [A].

    • The screw [B] is a sems screw. Be careful not to use the wrong screw when installing the paper exit tray.

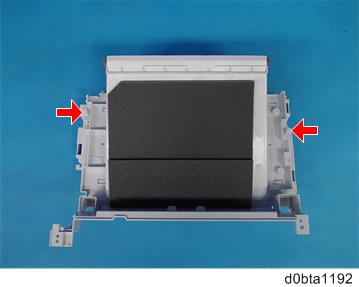

    • Be careful not to damage the hooks on the paper exit tray when removing or installing.
