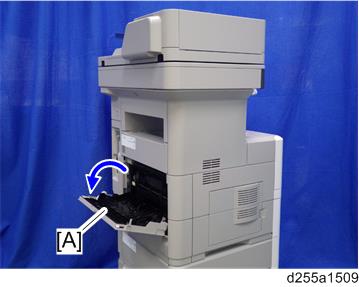

1. Open the rear upper cover [A].

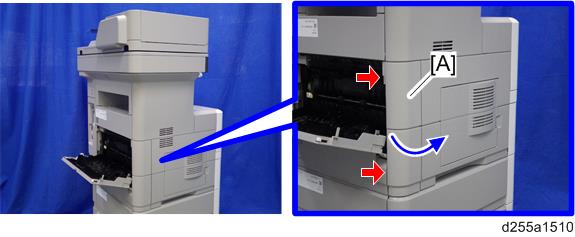

  2. Remove the left rear cover [A] by rotating it in the direction of the arrow. (hook×2)

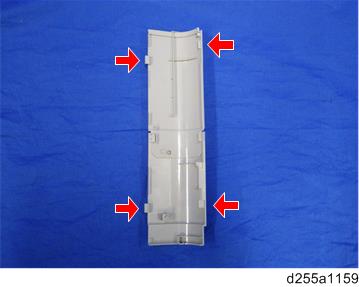

    • Be careful not to damage the hooks on the inside of the left rear cover when you remove or install the left rear cover.
